Description

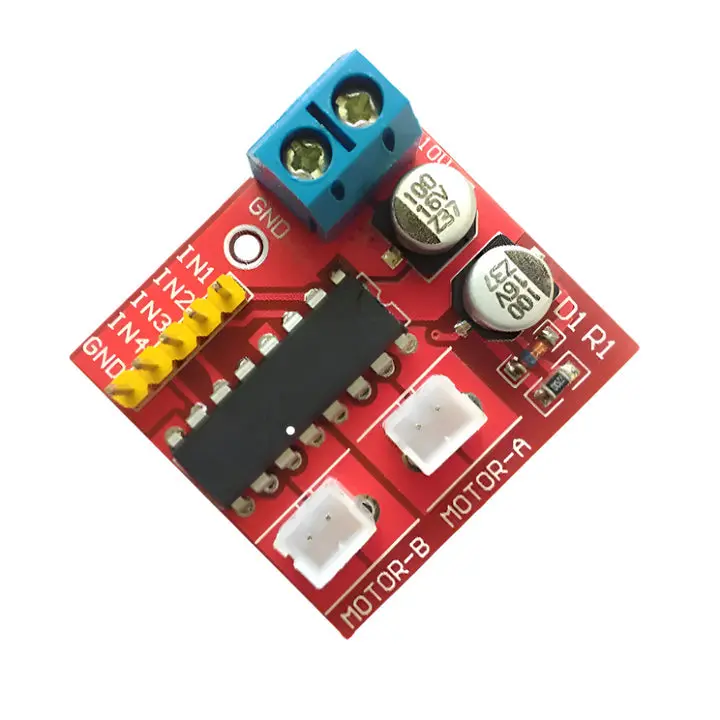

This MX1919 Based Motor Driver Module 2.5A is a high-power motor driver perfect for driving DC Motors and Stepper Motors. It uses the popular MX1919 motor driver IC. It can control up to 2 DC motors with directional and speed control.
This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mice, line-following robots, robot arms, etc.
Usage: H-bridges are typically used in controlling motors’ speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.
Arduino Sketch Considerations: The Arduino code sketch is pretty straightforward. Since there isn’t a library for the MX1919 Motor Controller you just have to declare which pins the controller is hooked to.
- Driver Model: MX1919 2.5A
- Driver IC: MX1919
- Operating Voltage: 2-10V
- Max Operating Current: 2.5A
- Dimensions (mm): 31.6 x 30.3x 11
- Weight: 12g
Features
- 2-Pin Connector for Motor & Power
- High-Quality Construction
- Supports up to 2.5A Current
- Drives Two Motors
Pins
- MOTOR-A: Motor A Output
- MOTOR-B: Motor B Output
- IN A1: 1st Input for Motor A
- IN A2: 2nd Input for Motor A
- IN B1: 1st Input for Motor B
- IN B2: 2nd Input for Motor B
Applications :
- DC motor speed and direction control
- Dual motor control for robotics and automation
- Arduino and microcontroller-based projects
- Smart cars, drones, and RC vehicles
- Home automation and IoT motor applications
Package Includes
- 1 x MX1919 Based Motor Driver Module – 2.5A (Upgraded Version)
