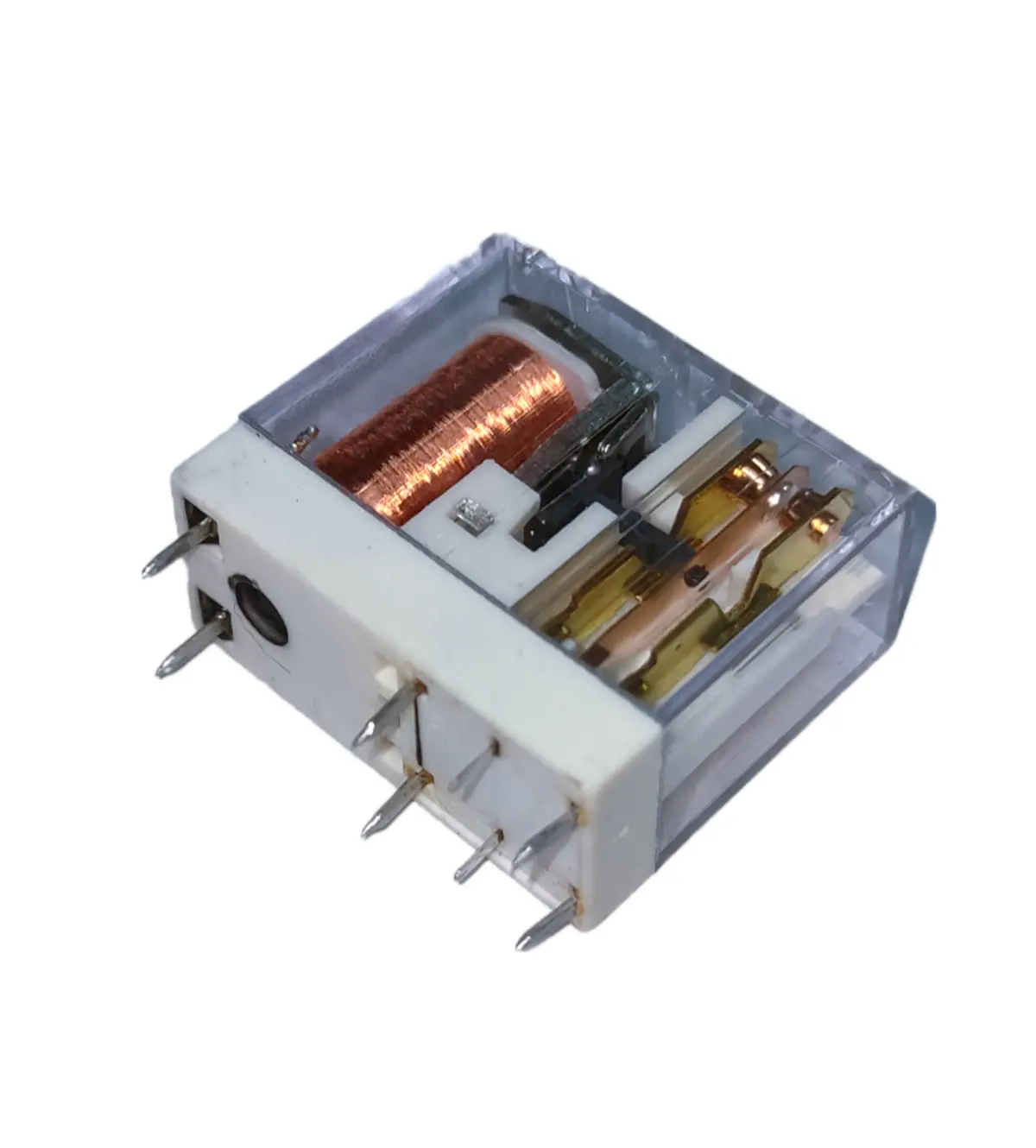

12V DPDT Glass Relay – 5A, 8-Pin OEN Type (Model 58-12-2C)

Specifications:

• Brand: OEN
• Contact material: Silver alloy
• Rated Voltage: 230VAC/28VDC
• Max Switching Voltage: 440VAC/220VDC
• Nominal voltage: 12V
• Pick-Up Voltage: 9.6V
• Drop-Out Voltage: 1.2V
• Switching current max: 5A
• Coil Resistance Ohms: 285 Ohms
• 2-Form C: 1250VA
• Trigger Current: 40mA Approx
• Operating time: 18msec
• Release time: 8msec
• Dustproof: Yes
• Low power consumption
• Working temperature: -40°C ~ 70°C
• Number of Pins: 8
• Case/Package: DIP
• Mount: PCB, Through Hole

Application:

• Telecommunication
• Domestic appliances
• Office machine
• Audio equipment, Remote Control, etc

Package Includes:

• 1 x 58-12-2C OEN Relay 12V/5A Relay

Note: Product Images are shown for illustrative purposes only and may differ from the actual products.
