Description
- Brand: Emax
- Model: ES3003
- Voltage: 4.8-6.0 V
- Torque: 3.0 / 3.5kgf.cm
- Rate: 0.15 / 0.13 s / 60 degrees
- STD Direction: Counter Clockwise/ Pulse travelling 1500 to 1900 μsec
- Gears: Plastic Gears
Specifications:
| Brand Name | EMAX | |
| Item Name | ES3004 | |
| Operating Voltage | 4.8V – 6.0V | |
| STD Direction | Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec | |
| Stall Torque | 4.8V | 3kg.cm Max |
| Operating Speed | 4.8V | 0.15 sec/60° at no load |
| Stall Torque | 6.0V | 3.5kg.cm Max |
| Operating Speed | 6.0V | 0.13 sec/60° at no load |
| Size | 28.45×13.00×31.10mm | |
| Weight | 17g | |
| Plug Available | FUT;JR | |
| Flower Head | 23T | |
| Maximum Travel | 145°±10° (700-2300μ sec) | |
| Others | Bearing; Metal; Analog | |
Package Included:

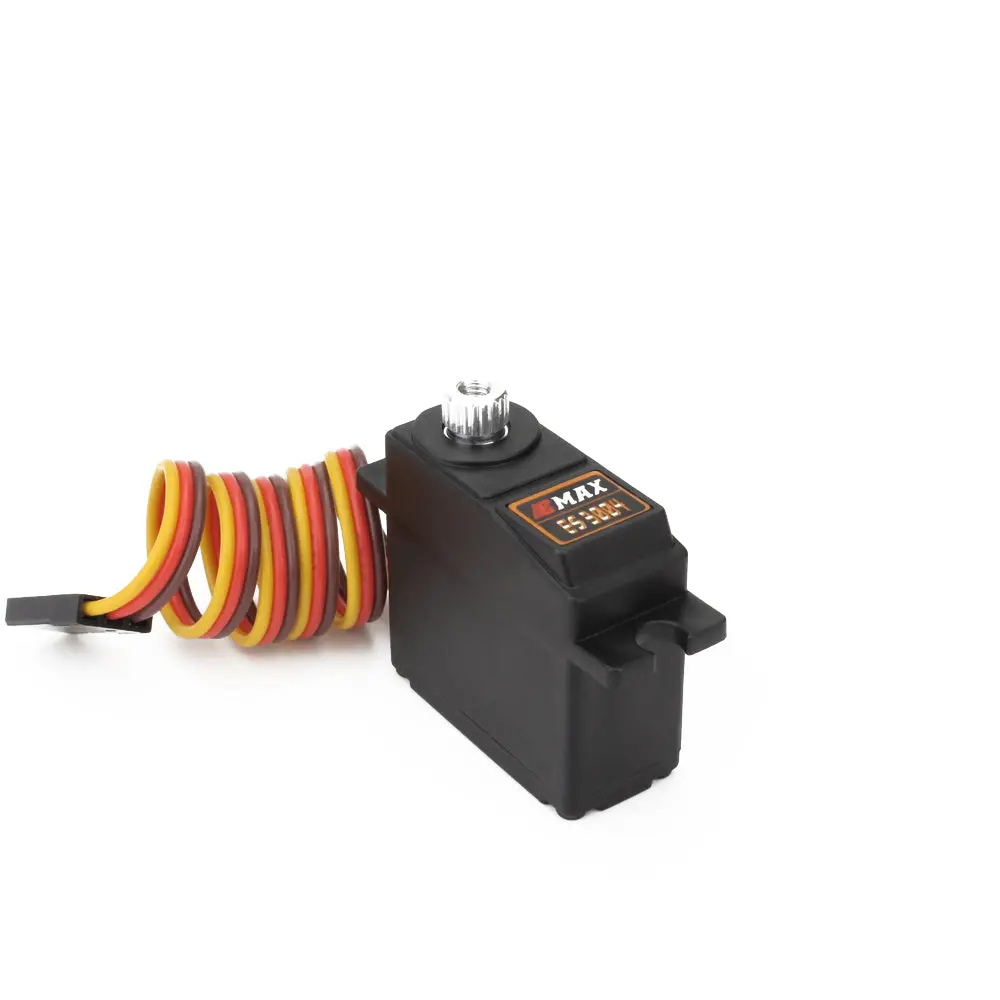

1x EMAX ES3004 Servo
