Elepak SMD Bridge Rectifier Collection – 90 Pieces, 8 Configurations

Description

Package Includes:

90 SMD Bridge 8 Types

• MB6S – 10 Pcs
• MB6F – 10 Pcs
• MB10S – 15 Pcs
• MB10F – 10 Pcs
• ABS10 – 10 Pcs
• DB107S – 15 Pcs
• DB157S – 10 Pcs
• DB207S – 10 Pcs

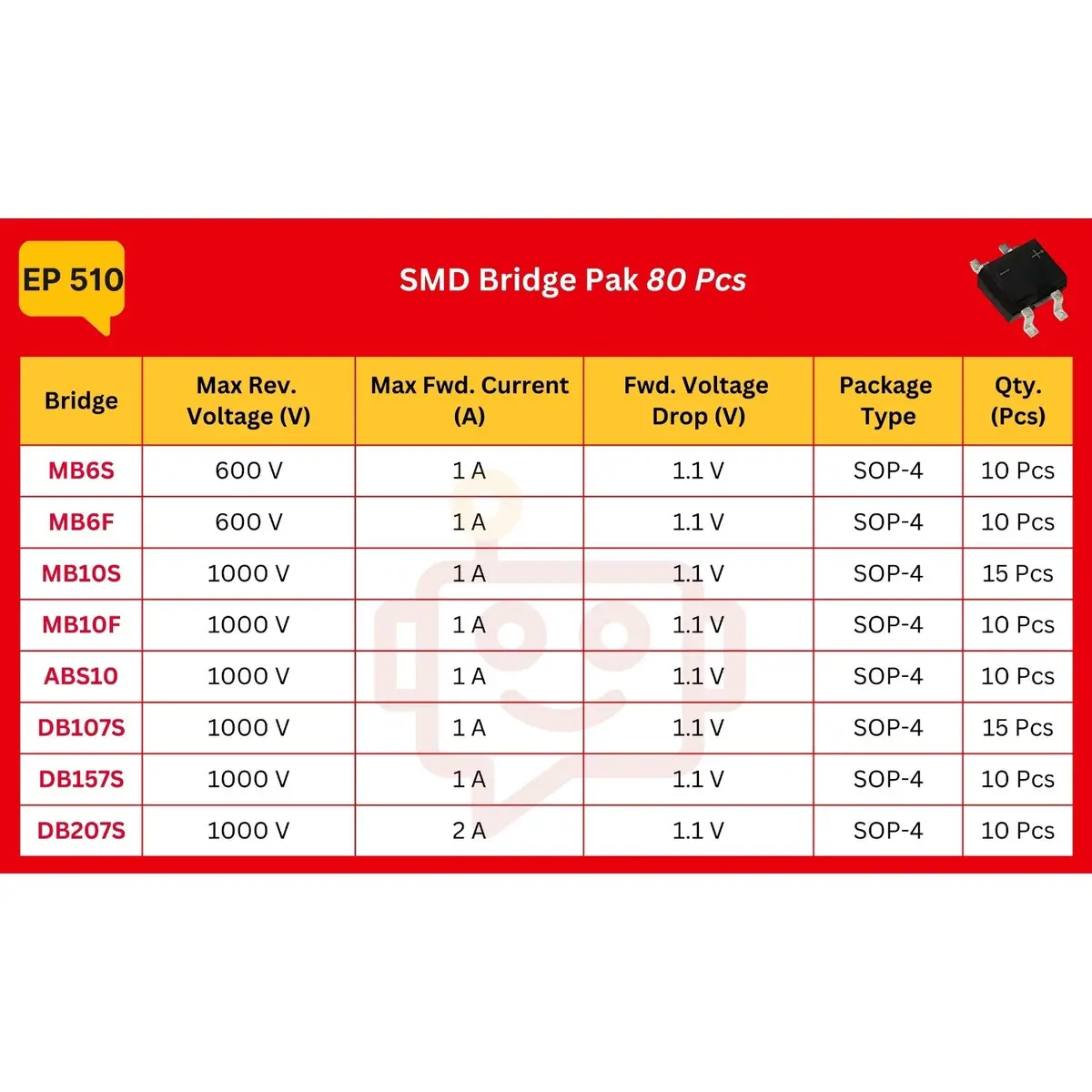

Technical Specifications:

• Type: SMD
• Model: Bridge Rectifier
• Package Type: SOP – 4
• Max Rev. Voltage: 600 V – 1000 V
• Max Fwd. Current: 1 A – 2 A
• Fwd. Voltage Drop: 1.1 V
• Pak Weight: 60 gm
• Pak Dimensions: 127 x 80 x 24 mm

Description

The SMD Bridge Pack is a versatile assortment of Surface Mount Bridge Rectifiers, designed for efficient AC-to-DC conversion in various electronic applications.

This pack includes multiple bridge rectifiers with different voltage and current ratings, making it ideal for power supply circuits, LED drivers, battery chargers, and consumer electronics.

Bridge Symbol:



Bridge Part Code:

• AC Input 1 (~ or AC1) – Connects to one side of the AC power source
• AC Input 2 (~ or AC2) – Connects to the other side of the AC power source
• Positive Output (+ or Vout+) – Provides the rectified DC positive voltage
• Negative Output (- or Vout-) – Provides the rectified DC negative voltage (ground)

Features:

• Compact Size
• Automated Assembly
• High Efficiency
• Durable & Reliable
• Better Heat Dissipation
• Versatile Applications
• Faster Switching

Applications:

• Power Supplies (SMPS, Adapters) – Converts AC to DC for stable power.
• LED Drivers – Provides rectified DC for LED lighting.
• Battery Chargers – Ensures efficient AC-to-DC conversion.
• Motor Drives – Used for rectification in motor control circuits.
• Industrial Equipment – Essential for automation and power regulation.
