Elepak 5mm Box-Type Capacitor Kit – 50 × 100V Units, 10 Values (1 nF to 1 µF)

Description

Package Includes:

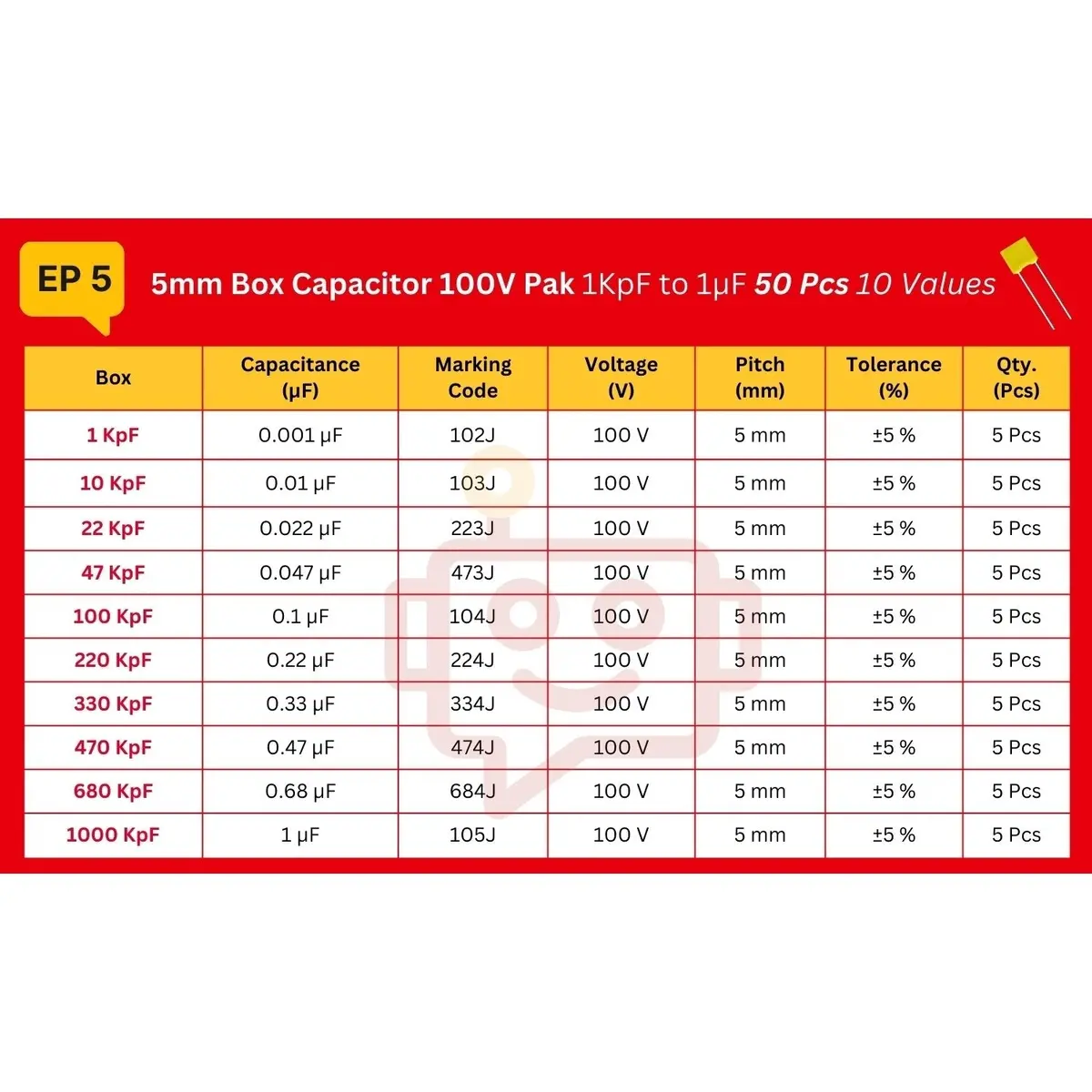

50 5mm Box Capacitor 100V 10 Types

• 102J – 0.001 µF – 5 Pcs
• 103J – 0.01 µF – 5 Pcs
• 223J – 0.022 µF – 5 Pcs
• 473J – 0.047 µF – 5 Pcs
• 104J – 0.1 µF – 5 Pcs
• 224J – 0.22 µF – 5 Pcs
• 334J – 0.33 µF – 5 Pcs
• 474J – 0.47 µF – 5 Pcs
• 684J – 0.68 µF – 5 Pcs
• 105J – 1 µF – 5 Pcs

Technical Specifications:

• Type: Through Hole
• Model: Box Capacitor
• Capacitance Range: 1 KpF – 1000 KpF
• Tolerance: ±5 %
• Lead Spacing: 5 mm
• Voltage Rating: 100 V
• Box Weight: 50 gm
• Box Dimensions: 127 x 80 x 24 mm

Description

A box capacitor is a type of film capacitor enclosed in a rectangular plastic or epoxy casing. The box-shaped enclosure provides mechanical protection, better insulation, and resistance to environmental factors.

Box Cap Symbol:



Box Cap Part Code:

Box Cap Structure:

Features:

• High stability and reliability
• Low ESR and minimal energy loss
• Non-polarized for AC/DC use
• Moisture and dust-resistant encapsulation
• Self-healing for longer lifespan

Applications:

• Power Supply Circuits: Used for smoothing voltage
• Audio Systems: Helps reduce noise in signals
• Timing Devices: Keeps oscillators running smoothly
• Electronics Protection: Reduces interference in sensitive components
• Energy Storage: Stores energy for use in circuits
