Elepak Enhanced SMA Diode Assortment – 250 SMD Units, 20 Types

Description

Package Includes:

250 SMD SMA Diode 20 Types

• M1 1N4001 – 10 Pcs
• M4 1N4004 – 10 Pcs
• M7 1N4007 – 20 Pcs
• SS14 1N5819 – 20 Pcs
• SS24 – 10 Pcs
• SS26 – 10 Pcs
• SS34 – 20 Pcs
• SS36 – 10 Pcs
• US1M UF4007 – 20 Pcs
• RS1M FR107 – 20 Pcs
• RS2M FR207 – 10 Pcs
• SS110 – 10 Pcs
• SS220 – 10 Pcs
• SS310 – 10 Pcs
• SS510 – 10 Pcs
• SS16 – 10 Pcs
• ES1J – 10 Pcs
• ES1D – 10 Pcs
• ES1M – 10 Pcs

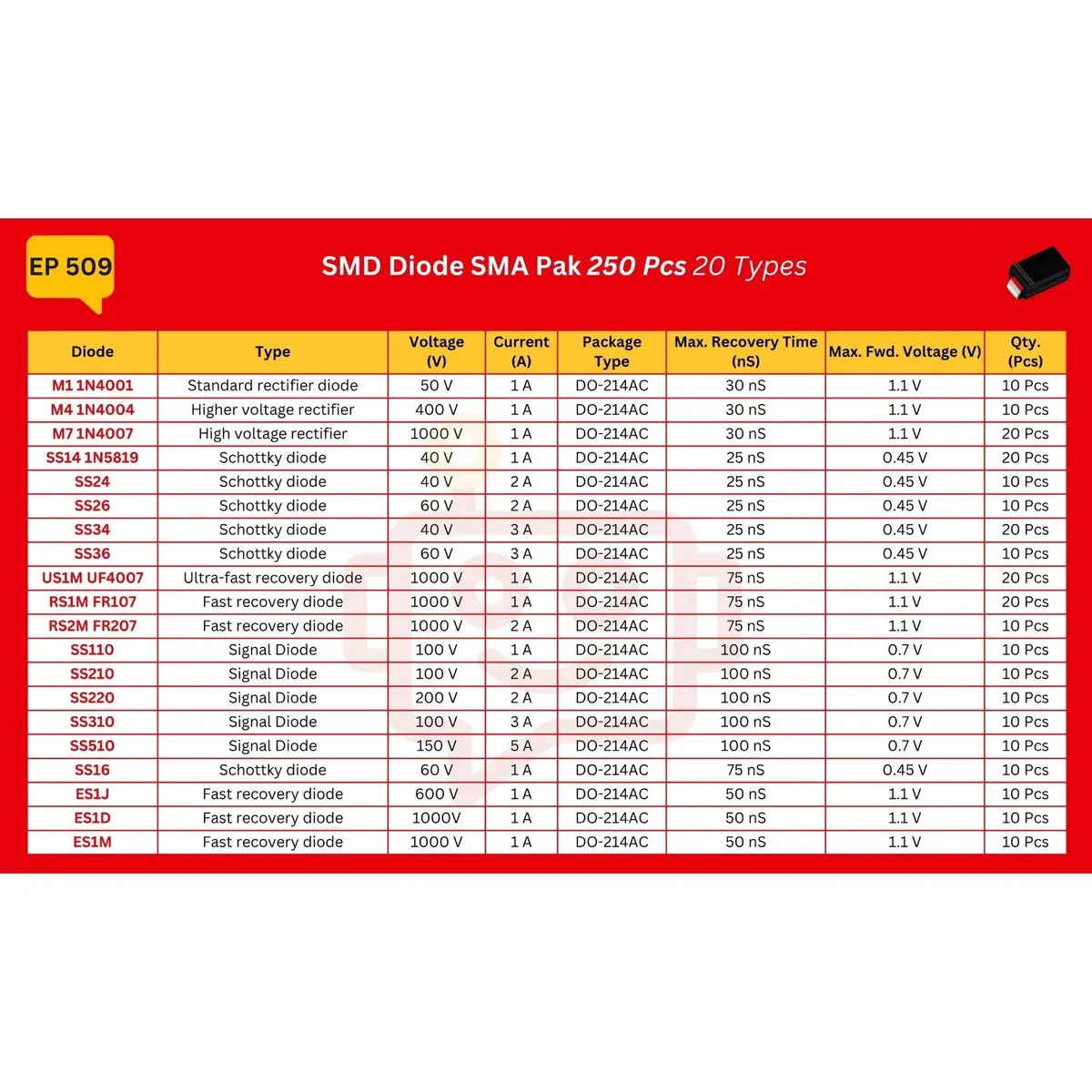

Technical Specifications:

• Type: SMD
• Model: SMA Diode
• Package Type: DO – 214AC
• Voltage: 50 V – 1000 V
• Current: 1 A – 5 A
• Max. Recovery Current: 25 nS – 100 nS
• Max. Forward Voltage: 0.45 V – 1.1 V
• Pak Weight: 100 gm
• Pak Dimensions: 127 x 80 x 24 mm

Description

SMD SMA diodes are compact, surface-mount rectifier and switching diodes in the SMA (DO-214AC) package, designed for efficient power rectification, voltage protection, and fast switching in modern electronic circuits.

This SMD SMA Diode Value Pack contains a well-curated selection of 20 different types of commonly used diodes, totaling 250 pieces, suitable for a wide range of electronic applications.

Diode Symbol:



Diode Structure:

Features:

• Compact & Space-Saving
• Efficient Heat Dissipation
• Low Power Loss
• Fast Switching Speed
• High Reliability & Durability

Applications:

• Bridge Rectifiers – Converts AC to DC in power supply circuits
• Voltage Clamping – Protects circuits from voltage spikes and transients
• Polarity Protection – Prevents damage from reverse voltage connections
• DC-DC Converters – Enhances power efficiency in voltage regulation circuits
• Switching Power Supplies (SMPS) – Ensures efficient power conversion in electronic devices
