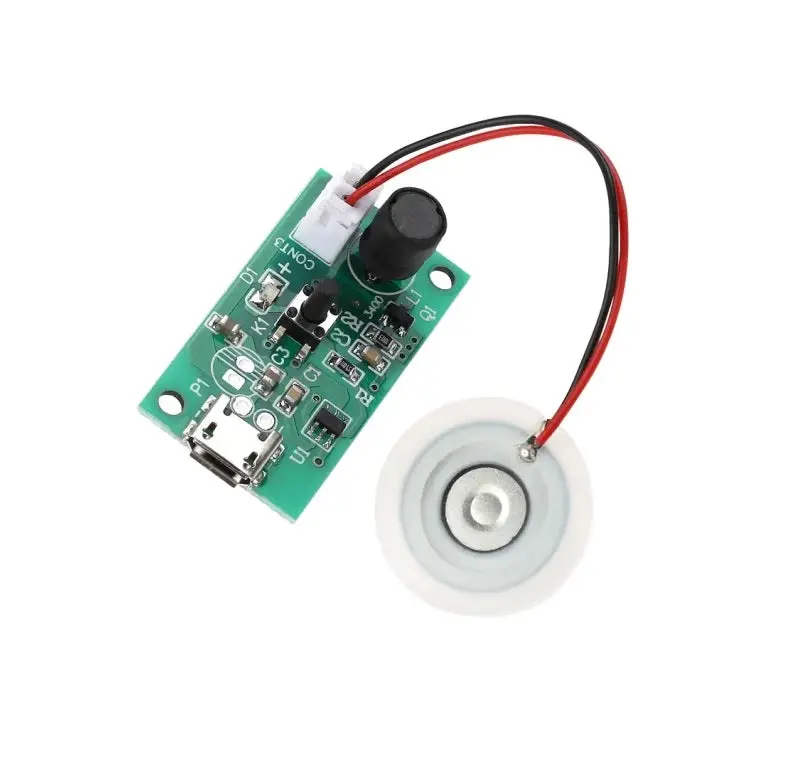

USB-Powered 5V 2W Ultrasonic Nebulizer Circuit Board (108 kHz) with Diffuser Stick

Description

Features:

• Come with a driver
• Power-ON trigger work
• 108KHz high-frequency oscillator
• Micron level aperture
• The glazed surface of the atomized sheet

Specification:

• Product Name: 108KHz 20mm USB Humidifier
• Work Voltage: DC 4.5V~5.0V
• Work Power:2W
• Work Frequency:108KHz(+/-3KHz)
• Power Type: Female USB Socket
• Diameter without rubber ring:16mm
• Diameter with rubber ring:20mm
• Spray Diameter:5um
• Spray Hole:740 holes
• Spray speed:50ml/h
• Work Temperature:0℃ ~ 85℃
• Work Humidity:10%~90%RH
• Driver Size:35*19*15mm

Application:

• Humidifier | mist maker
• Beauty care for facial massager
• Medical liquid atomizing Equipment

This DC5V Humidifier USB Spray Module 108KHz with foam stick with Atomizing Chip Moisture Film Humidification atomization machine consists of an atomization plate tablet with a diameter of 20mm. This Ultrasonic Humidifier Piezoelectric Transmitter module works on the principle of cavitation produced by sound waves.

Just provide the DC 5V power supply it will turn into a mini ultrasonic atomizer. As sound waves contain compression and rarefaction. Due to extremely rapid movement, water droplets can no longer sustain their liquid state and get converted into vapor immediately. This vibration is produced by a piezoelectric filament.

It is also known as USB Humidifier Atomization Driver Board PCB Circuit Board 5V Spray Incubation, Mini Humidifier USB spray module humidifier pcb circuit board for DIY kit Incubation Experiment Equipment, USB Humidifier Atomization Driver Board PCB Circuit Board 5V Spray Incubation, 5V DIY Ultrasonic Piezoelectric Humidifier Moisture Atomizing Chip Mist maker circuit board.

Package Includes:

• 1 x Humidifier Driver Board
• 1 x 16mm Atomizer Plate
• 1 x Cotton Stick Stand
• 1 x Cotton Stick
