Elepak SMD 0603 LED Kit – 100 pcs, 5 Colors

Description

Package Includes:

100 SMD 0603 LED 5 Colors

• Red – 20 Pcs
• Yellow – 20 Pcs
• Green – 20 Pcs
• White – 20 Pcs
• Blue – 20 Pcs

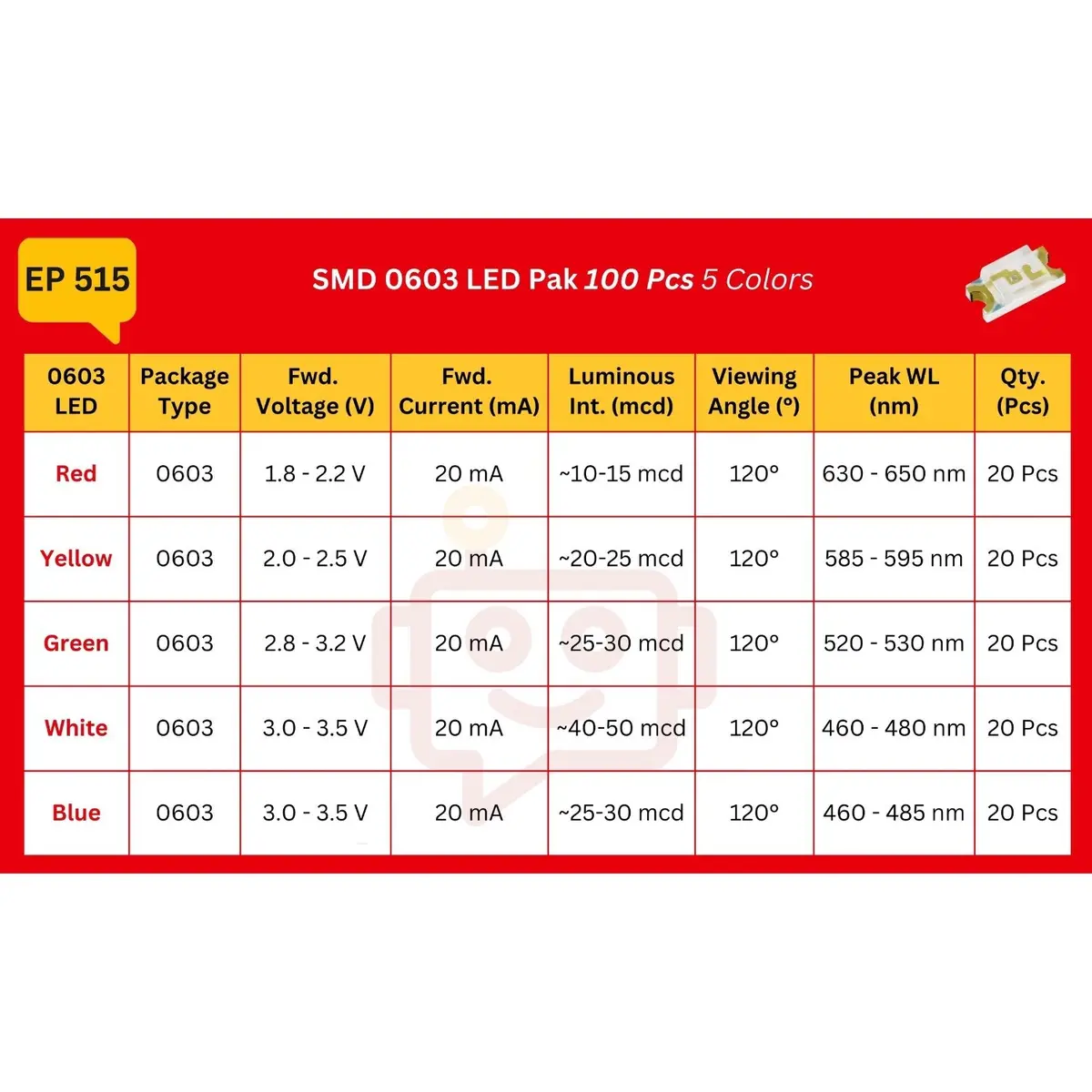

Technical Specifications:

• Type: SMD
• Model: LED
• Package Type: 0603
• Color: Red, Yellow, Green, White, Blue
• Viewing Angle: 120°
• Current: 20 mA
• Forward Voltage Ratings:
  • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V,
  • White: 3.0 – 3.5 V, Blue: 3.0 – 3.5 V
• Luminous Intensity:
  • Red: ~10-15 mcd, Yellow: ~20-25 mcd, Green: ~25-30 mcd
  • White: ~40-50 mcd, Blue: ~25-30 mcd
• Peak Wavelength:
  • Red: 630 – 650 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm
  • White: 460 – 480 nm, Blue: 460 – 485 nm
• Pak Weight: 50 gm
• Pak Dimensions: 90 x 60 x 24 mm

Description

The 0603 SMD LED is a compact, energy-efficient, and high-brightness component widely used in electronic circuits and PCB assemblies. The “0603” refers to the LED’s physical dimensions—0.06 inches × 0.03 inches (1.6mm × 0.8mm) – making it suitable for space-constrained applications.

This set includes 100 high-quality SMD (Surface-Mount Device) LEDs in the 0603 package size, with five vibrant colors: Red, Yellow, Green, White, and Blue (20 pieces each). These LEDs are designed for compact electronic applications and are ideal for PCB mounting, circuit prototyping, indicator lights, and various DIY projects.

0603  LED Symbol:



0603 LED Structure:

Features:

• Compact size
• Low power consumption
• High brightness output
• Multiple colour options
• Wide viewing angle
• Fast response time

Applications:

• PCB Indicators – Used as status indicators in electronic circuits
• Backlighting – Provides illumination for displays, keypads, and screens
• Consumer Electronics – Found in remote controls, smartphones, and wearables
• Automotive Applications – Used in dashboards, interior lighting, and signal indicators
• IoT & Smart Devices – Integrated into connected devices for status indication
