Elepak SMD 0805 LED Kit – 100 pcs, 5 Colors

Description

Package Includes:

100 SMD 0805 LED 5 Colors

• Red – 20 Pcs
• Yellow – 20 Pcs
• Green – 20 Pcs
• White – 20 Pcs
• Blue – 20 Pcs

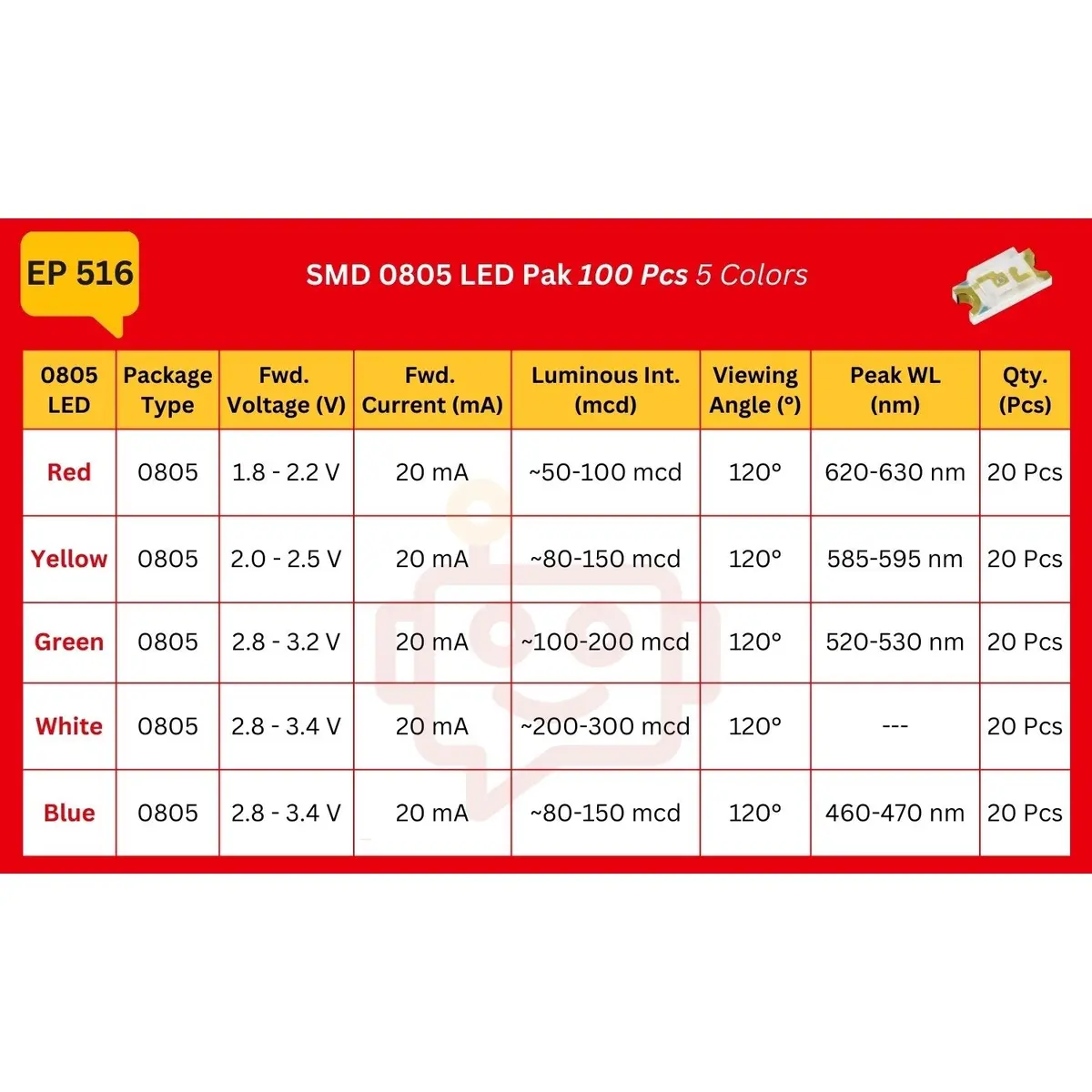

Technical Specifications:

• Type: SMD
• Model: LED
• Package Type: 0805
• Color: Red, Yellow, Green, White, Blue
• Viewing Angle: 120°
• Current: 20 mA
• Forward Voltage Ratings:
  • Red: 1.8 – 2.2 V, Yellow: 2.0 – 2.5 V, Green: 2.8 – 3.2 V
  • White: 2.8 – 3.4 V, Blue: 2.8 – 3.4 V
• Luminous Intensity:
  • Red: ~50 – 100 mcd, Yellow: ~80 – 150 mcd, Green: ~100 – 200 mcd,
  • White: ~200 – 300 mcd, Blue: ~80 – 150 mcd
• Peak Wavelength:
  • Red: 620 – 630 nm, Yellow: 585 – 595 nm, Green: 520 – 530 nm,
  • White: —, Blue: 460 – 470 nm
• Pak Weight: 50 gm
• Pak Dimensions: 90 x 60 x 24 mm

Description

The SMD 0805 LED is a surface-mount light-emitting diode with a compact size of 2.0mm × 1.25mm, designed for efficient and high-brightness illumination in electronic circuits.

Available in five colors (Red, Yellow, Green, White, Blue), these LEDs are ideal for various applications, including PCB indicators, backlighting, and status signaling.

0805 LED Symbol:



0805 LED Structure:

Features:

• Compact size
• Low power consumption
• High brightness output
• Multiple colour options
• Wide viewing angle
• Fast response time

Applications:

• PCB Indicators – Used as status indicators in electronic circuits
• Backlighting – Provides illumination for displays, keypads, and screens
• Consumer Electronics – Found in remote controls, smartphones, and wearables
• Automotive Applications – Used in dashboards, interior lighting, and signal indicators
• IoT & Smart Devices – Integrated into connected devices for status indication
