Description
Package Includes:

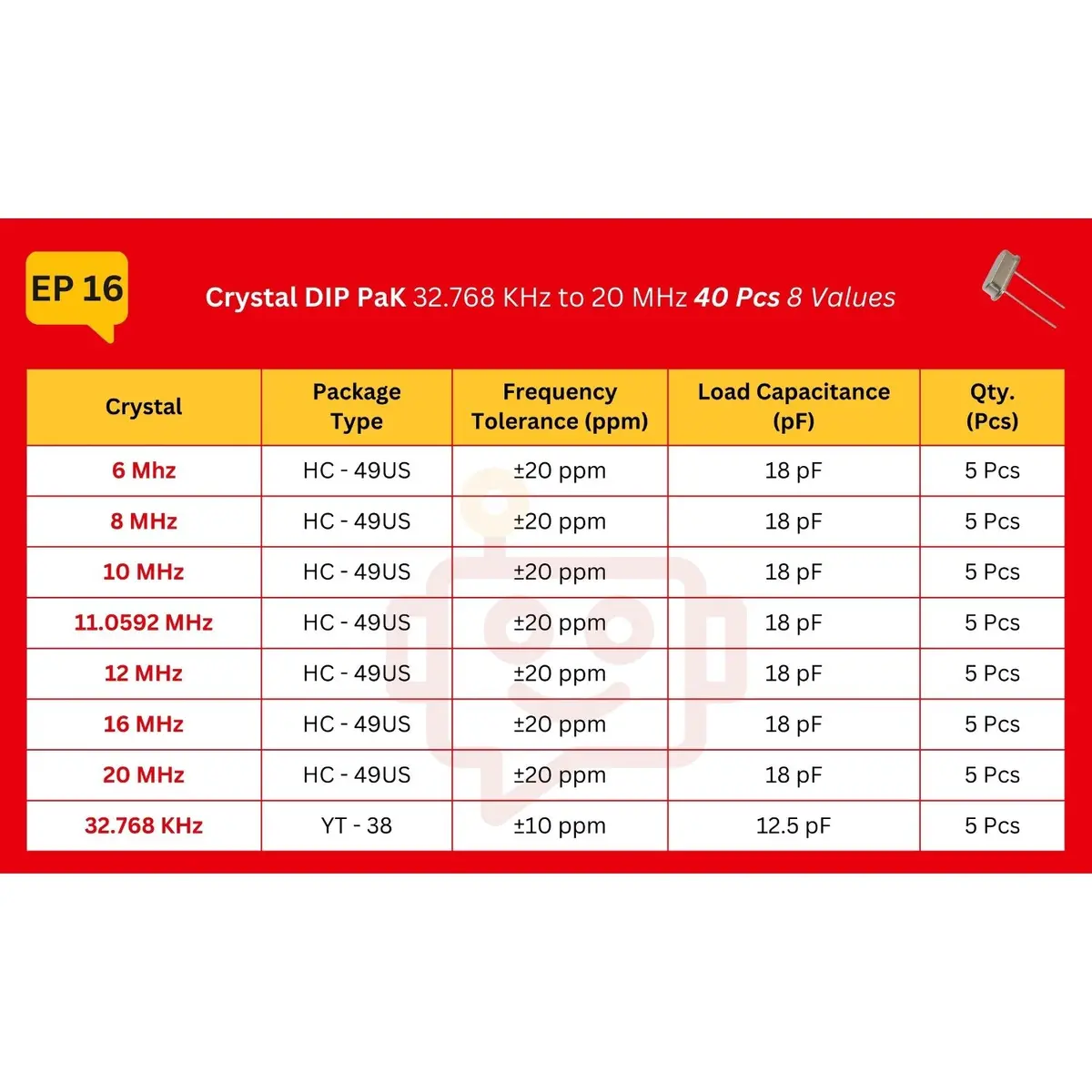

40 Pcs Crystal 49S-DIP 8 Types
- 6 MHz – 5 Pcs
- 8 MHz – 5 Pcs
- 10 MHz – 5 Pcs
- 11.0592 MHz – 5 Pcs
- 12 MHz – 5 Pcs
- 16 MHz – 5 Pcs
- 20 MHz – 5 Pcs
- 32.768 KHz – 5 Pcs
Technical Specifications:
- Type: Through Hole
- Model: 49S-DIP Crystal
- Frequency Range: 32.768 KHz, 6 MHz – 20 MHz
- Frequency Tolerance: ±10 ppm – ±20 ppm
- Load Capacitance: 12.5 pF – 18 pF
- Pak Weight: 50 gm
- Pak Dimensions: 90 x 60 x 24 mm
Description
The 49-DIP type crystals are quartz crystals housed in a Dual In-line Package (DIP) configuration, specifically designed for precision frequency control in electronic circuits. These crystals are well-suited for applications requiring accurate timing and oscillation, such as microcontrollers, clocks, and frequency generation circuits.
Crystal Symbol:
Crystal Structure:
Features:
- Precision and Stability
- Wide Temperature Range
- Low Aging Rate
- Compact and Convenient
- Cost-Effective
- Easy Integration
- Low Power Consumption
Applications:
- Microcontroller Clock Sources: Provide accurate timing signals for microcontrollers and processors
- Real-Time Clocks (RTC): Used in devices like watches and alarms for timekeeping
- Frequency Generators: Generate precise frequencies for testing and signal generation
- Signal Processors: Help with signal timing and synchronization in communication systems
- Communication Systems: Ensure accurate frequency control in RF and data transmission equipment
- Embedded Systems: Used for timing in microprocessor-based designs and systems
- Consumer Electronics: Found in digital clocks, audio equipment, and other time-dependent devices
- Timing Devices: Used in timers, counters, and event-driven systems for stable and accurate timing
