Description

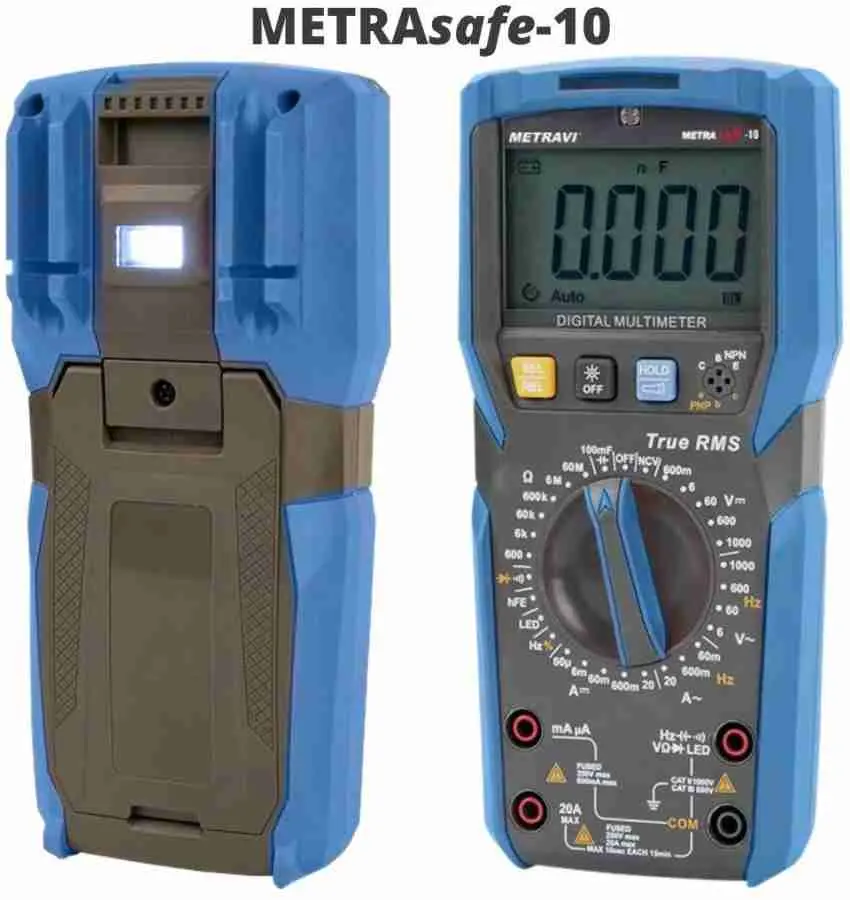

Metravi Metrasafe-10 is a 6000 counts True-RMS digital fully-protected multimeter. A unique feature is the NCV function which can quickly identify live and neutral wires through light intensity.
In addition, the Metrasafe -10 can measure temperature and detect live/neutral wire through a single test lead by contact. It is designed with audio/visual alarm, allowing you to observe the test result more intuitively. The flashlight and the auto backlight features are also convenient when measuring in the dark. With ergonomic design and durable double injection build.
Features:
- 6000 Counts
- T-RMS
- Auto-ranging for Capacitance, Frequency and Temperature
- Double-injection housing makes it durable, ergonomic design
- Fully-protected
- AC Voltage: TRMS 6V/60V/600V/1000V
- Accuracy: ± (0.8%+5)
- DC Voltage: 600mV/6V/60V/600V/1000V
- Accuracy: ± (0.5%+2)
- AC Current: TRMS 60mA/600mA/20A
- Accuracy: ±(1.0%+12)
- DC Current: 60µ/60mA/600mA/20A
- Accuracy: ± (0.8%+8)
- Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Accuracy: ± (0. 8% +3)
- Capacitance: 60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF
- Accuracy: ± (2.5%+20)
- Frequency o-9.999Hz to 9.999MHz
- Accuracy ± (0.1%+4)
- Temperature: -40°C to 1000°C
- Accuracy: ± (2%+4)
- Duty Cycle
- Diode Test
- Continuity Test
- Transistor Test
- NCV to quickly identify live wires through light intensity
- Detect live and neutral wire through a single test lead by contact
- Audio and Visual alarm for more intuitive test results
- Auto backlight which turns on automatically in darker areas
- CAT III 600V, CAT II 1000V
- LVD Directive (2014/35/EU): EN 61010-1:2010, EN 61010-2-030:2010, EN 61010-2-033:2012 (for hand-held meters with voltage measurement function)
- EMC Directive (2014/30/EU): EN 61326-1:2013, EN 61326-2-2:2013
- AC measurement bandwidth upto 1kHz
Specifications:
| Product Type | Multimeter |
| Model No | Metrasafe10 |
| Display | Backlit LCD |
| Colour | Blue-Black |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 4 |
| Duty Cycle Range | 0.1% to 99.9% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 1mV to 1V |
| DC Current Resolution | 0 .01mA to 10mA |
| AC Current Resolution | 10µA to 10mA |
| Resistance Resolution | 0.1 to 0.01M Ohms |
| Capacitance Resolution | 1pF to 100uF |
| Temperature Resolution | 1°C |
| Frequency Resolution | 0.001Hz to 100kHz |
| Certifications | CAT-II 1000V, CAT-III 600V, EMC Directive (2014/30/EU), EN 61010-1:2010, EN 61010-2-030:2010, EN 61010-2-033:2012, EN 61326-1:2013, EN 61326-2-2:2013, LVD Directive (2014/35/EU) |
