Description

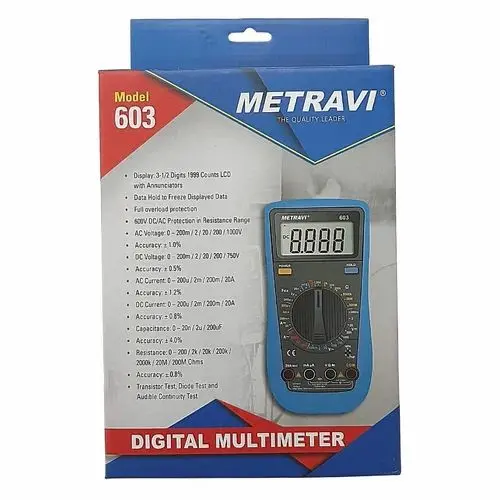

Digital Multimeter Model – 603 is a 31⁄2 digits meter with steady operations, and highly reliable hand-held measuring instrument having different measurement positions. The Multimeter not only can measure AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode & Continuity Test, and Transistor Test but also has range Display.
Features:
- Auto Power Off
- Data Hold to freeze the displayed reading
- Display: 3-1/2 digits 1999 Counts Backlit Extra Large LCD
- DC Voltage: 0-200.0mV/2.000V/20.00V/200.0V/1000V
- Accuracy: ± 0.5%
- AC Voltage: 0-200.0mV/2.000V/20.00V/200.0V/750V
- Accuracy: ± 0.8%
- DC Current: 0-200.0uA/2.000mA/200.0mA/20.00A
- Accuracy: ± 0.8%
- AC Current: 0-200.0uA/2.000mA/200.0mA/20.00A
- Accuracy: ± 1.2%
- Resistance: 0-200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ /200MΩ
- Accuracy: ± 0.8%
- Capacitance: 0-20nF/2uF/200uF
- Accuracy: ±4.0%
- With Diode Test, Transistor Test, and Audible Continuity Test Facility.
- CAT II 600V
Specifications:
| Product Type | Multimeter |
| Model No | 603 |
| Display | Backlit LCD |
| Colour | Blue-Black |
| Sampling Time | 3 times/sec |
| Power Source | Battery Operated |
| Battery Size | 9V |
| No of Batteries | 1 |
| Battery Type | Alkaline |
| DC Voltage Range | 0-200mV/2V/20V/200V/1000V |
| DC Voltage Accuracy | ±0.5% |
| AC Voltage Range | 0-200mV/2V/20V/200V/750V |
| AC Voltage Accuracy | ±0.8% |
| AC Current Range | 0-200uA/2mA/200mA/20A |
| AC Current Accuracy | ±1.2% |
| DC Current Range | 0-200uA/2mA/200mA/20A |
| DC Current Accuracy | ±0.8% |
| Capacitance Range | 0-20nF/2uF/200uF |
| Capacitance Accuracy | ±4.0% |
| Resistance Range | 0-200/2k/20k/200k/2M/20M/200M |
| Resistance Accuracy | ±0.8% |
| DC Voltage Resolution | 0.1mV to 1V |
| AC Voltage Resolution | 0.1mV to 1V |
| DC Current Resolution | 0.1µA to 10mA |
| AC Current Resolution | 0.1uA to 10mA |
| Capacitance Resolution | 10pF to 100nF |
| Resistance Resolution | 0.1 to 100k |
| Certifications | CAT II 600V |
