Elepak Mylar Film Capacitor Kit – 200 Pieces, 16 Values (22 pF to 1 µF)

Description

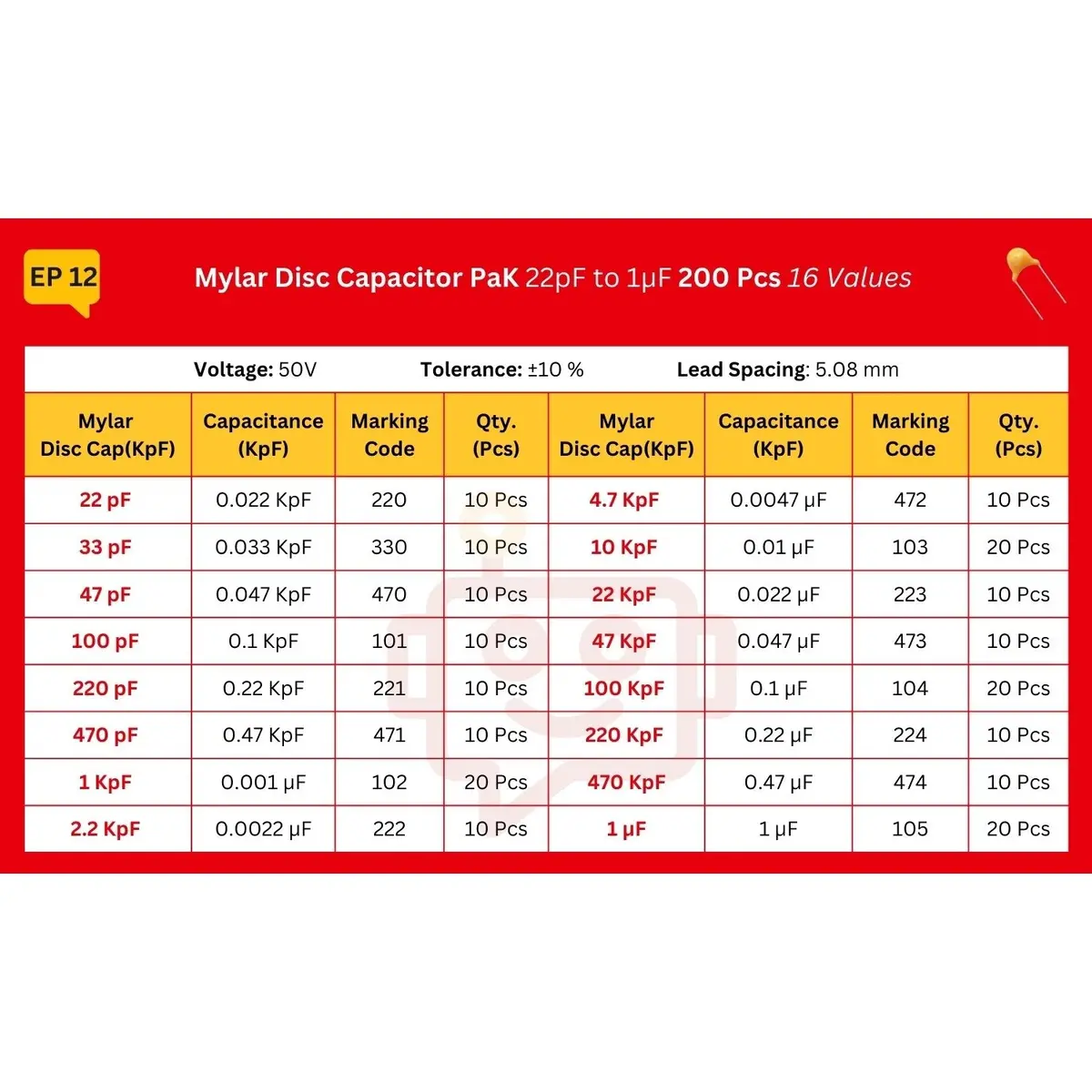

Package Includes:

200 Mylar Disc Capacitor Capacitor 16 Types

• 22 pF – 10 Pcs
• 33 pF – 10 Pcs
• 47 pF – 10 Pcs
• 100 pF – 10 Pcs
• 220 pF – 10 Pcs
• 470 pF – 10 Pcs
• 1 KpF – 20 Pcs
• 2.2 KpF – 10 Pcs
• 4.7 KpF – 10 Pcs
• 10 KpF – 20 Pcs
• 22 KpF – 10 Pcs
• 47 KpF – 10 Pcs
• 100 KpF – 20 Pcs
• 220 KpF – 10 Pcs
• 470 KpF – 10 Pcs
• 1 µF – 20 Pcs

Technical Specifications:

• Type: Through Hole
• Model: Mylar Disc Capacitor
• Capacitance Range: 22 pF – 1 µF
• Voltage: 50 V
• Tolerance: ±10 %
• Pak Weight: 60 gm
• Pak Dimensions: 127 x 80 x 24 mm

Description

Mylar Disc Capacitors are a type of film capacitor constructed using polyester film (Mylar) as the dielectric material. These capacitors are widely used in electronic circuits due to their reliable performance, compact size, and ability to provide stable capacitance over a wide range of temperatures and frequencies. They are typically non-polarized, making them suitable for both AC and DC applications.

This assortment is perfect for engineers, hobbyists, and technicians working on audio circuits, oscillators, radio frequency (RF) circuits, and timing circuits. With 200 capacitors in total, the pack provides a good mix of values suitable for various designs and troubleshooting tasks.

Capacitor Symbol:

Features:

• Maintains consistent capacitance across a wide temperature range and frequencies
• Suitable for both AC and DC circuits, simplifying installation and usage
• Small size with robust construction for long-lasting reliability
• Available in values from 22pF to 1µF, offering versatility for different applications
• Cost-effective option with excellent performance, commonly used in various electronic circuits

Applications:

• Signal Filtering: Used in power supply filters and signal conditioning circuits to smooth out voltage fluctuations
• Coupling and Decoupling: Commonly used in audio and RF circuits to couple signals between stages or decouple noise from power supplies
• Oscillators and Timing Circuits: Ideal for use in oscillators and timing applications, where precise capacitance values are needed
• Audio Circuits: Widely used in audio equipment for signal filtering, noise reduction, and frequency response shaping

Low to Medium-Frequency RF Circuits: Used in RF circuits for tuning and filtering, especially in the lower frequency ranges
