Elepak Universal Through-Hole Prototype PCB Pack – 10 Boards, 5 Layout Styles (2.54 mm Pitch)

Description

Package Includes:

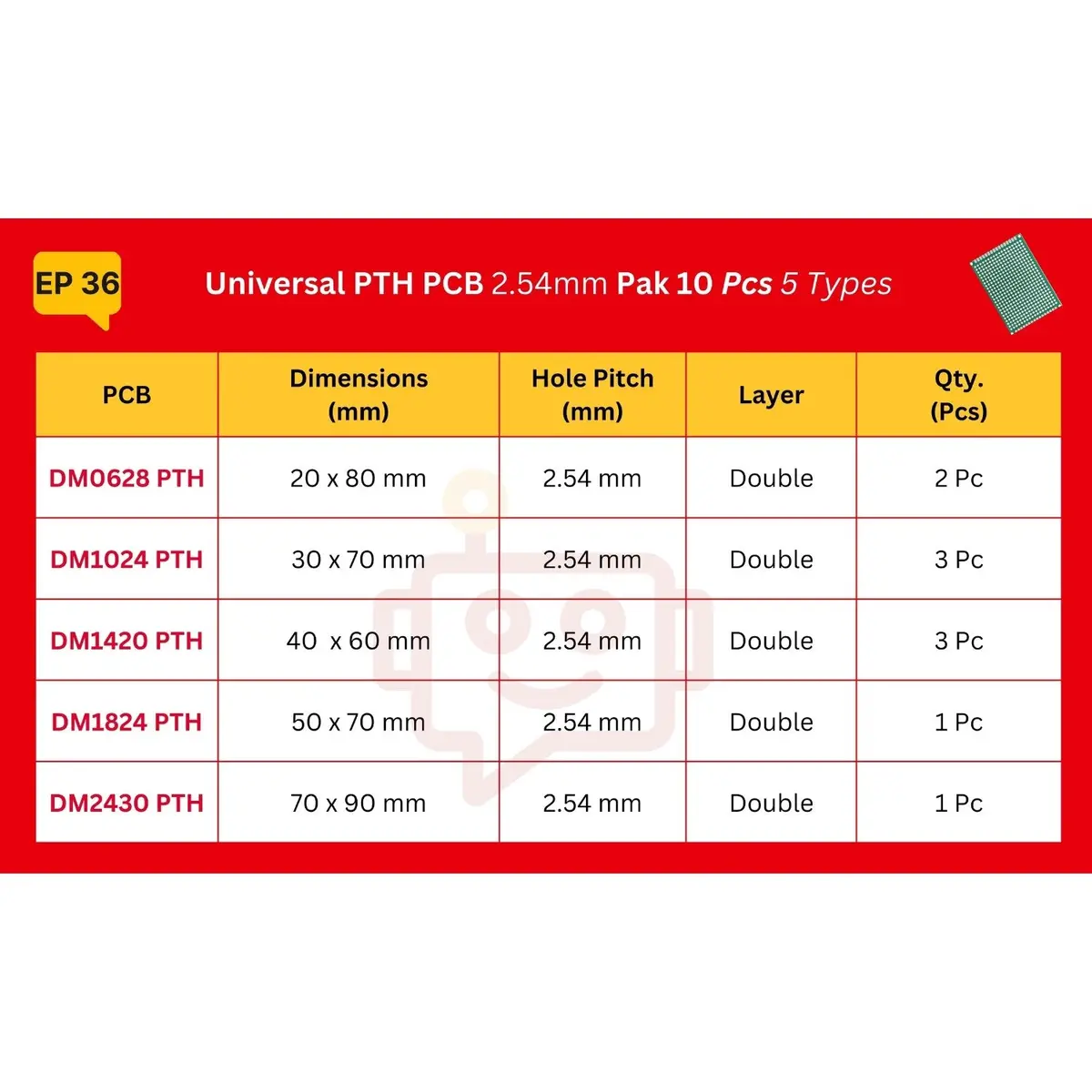

10 General Purpose PTH PCB 2.54mm 5 Types

• DM0628 – 2 Pc
• DM1024 – 3 Pc
• DM1420 – 3 Pc
• DM1824 – 1 Pc
• DM2430 – 1 Pc

Technical Specifications:

• Type: Through Hole
• Model: General Purpose PCB
• Board Thickness: 1.6 mm
• Copper Layer: Double-Sided
• Hole Diameter: 1.0 mm
• Hole Pitch: 2.54 mm
• Copper Thickness: 35 µm
• Solder Mask: Green (Standard)
• Pak Weight: 110 gm
• Pak Dimensions: 127 x 80 x 24 mm

Description

A General Purpose PTH (Plated Through Hole) PCB is a versatile printed circuit board designed for prototyping and assembling electronic circuits using through-hole components. It features a standard 2.54mm hole pitch, making it compatible with a wide range of electronic components such as resistors, capacitors, transistors, and integrated circuits (ICs).

This set includes five types of general-purpose PTH (Plated Through Hole) PCBs suitable for prototyping and DIY electronic projects. These PCBs are versatile and can be used for assembling circuits with through-hole components such as resistors, capacitors, ICs, and connectors.

PCB Symbol:

PCB Structure:

Features:

• Easy prototyping and circuit testing
• Standard 2.54mm pitch for DIP components
• Durable FR4 material with high heat resistance
• Strong electrical and mechanical connections
• Pre-drilled holes for easy soldering

Applications:

• Prototyping and circuit development – Ideal for testing circuit designs before final production
• DIY electronics and hobby projects – Suitable for building custom electronic projects
• Educational and training purposes – Used in labs and workshops for learning circuit assembly
• Custom circuit design and testing – Allows flexible design modifications and troubleshooting
• Repair and modification of existing circuits – Helps in fixing or upgrading electronic devices
• Small-scale electronic production – Cost-effective for low-volume PCB-based projects
• Sensor and module interfacing – Supports easy integration of sensors and modules
• Power supply and converter circuits – Used for assembling power-related circuits
• Microcontroller and embedded system projects – Ideal for Arduino, Raspberry Pi, and other boards
• Communication and IoT device prototyping – Enables quick assembly of IoT-based circuits

Explore more from our collection.
