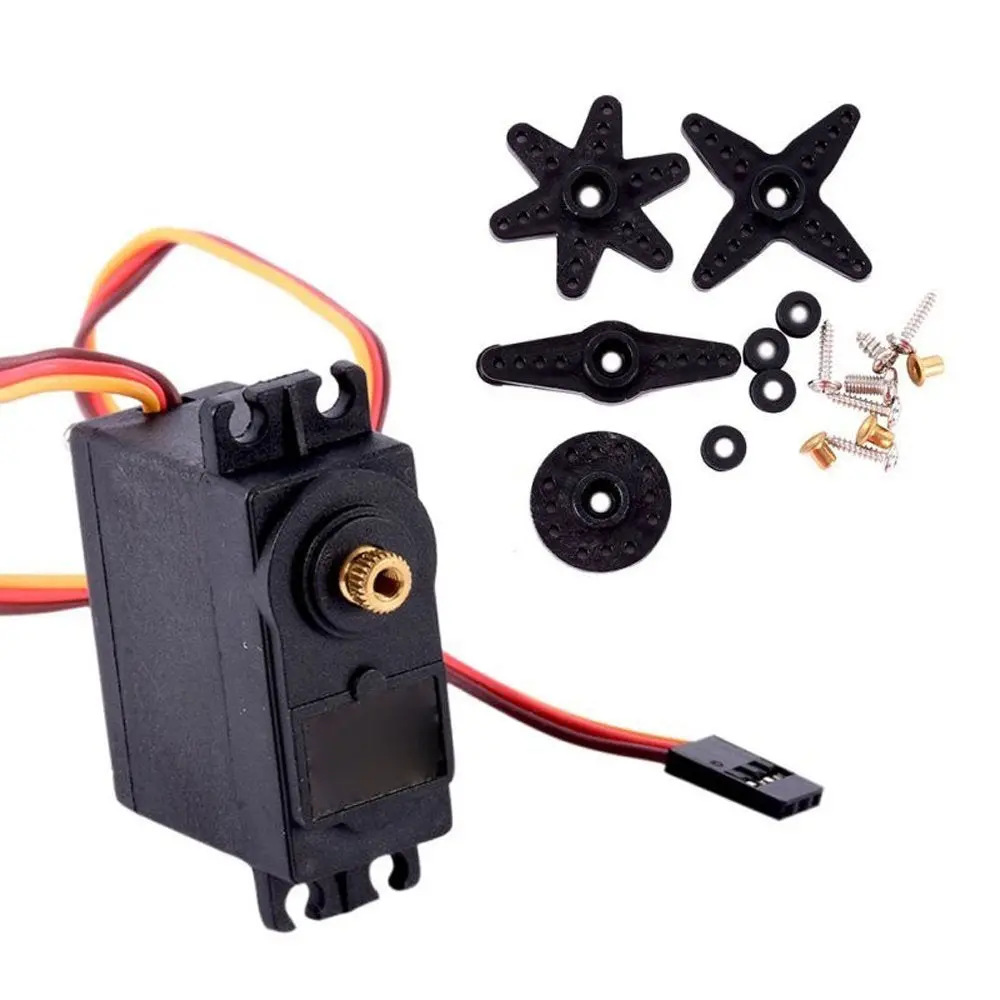

Tower Pro MG996R Full-Metal Gear Servo – 360° Continuous or 180° Positional Mode

Description

• Metallic gears, standard size, high torque
• Suitable for arduino, raspberry pi and node mcu.
• Original tower pro 996r.
• Stall torque: 9.4 kg‚·cm (4.8 v ), 11 kg,·cm (6 v)
• Operating speed: 0.17 s/60 (4.8 v), 0.14 s/60(6 v)

This is the upgraded model of the MG995 servo. MG996r is a high quality, high torque for all your robotics and RC needs. This servo is specially made for use in RC airplanes, fixed-wing airplanes, helicopters, robotics, mini robot, mini manipulator, etc. Libraries available make is easy to use this servo motor in you project. This motor generates a massive 15kg.cm torque. We have carefully selected this servo motor for the and performance among the numerous similar motors available in the market. It comes with a 3-pin power, control cable and mounting hardware.

Features:

• Servo Size: 41mm x 20 x 43mm
• Weight: 55g
• Metal gear hight torque Double ball bearing design
• Stall Torque: 4.8V – 13kg/cm, 6.0V – 15kg/cm
• No Load Operating Speed: 4.8V – 0.17sec/60, 6.0V – 0.14sec/60
• Dead band width: 5 microseconds
• Operating voltage: 4.8V – 6V
• Temperature range: 0- 55 30cm
• 3pin connector wire.
