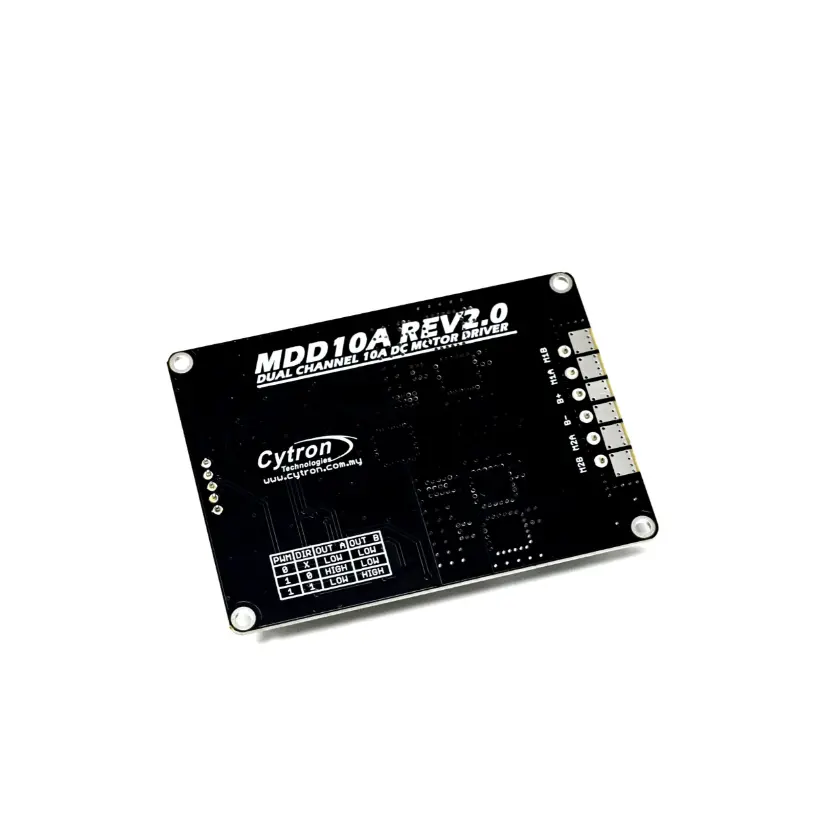

Cytron MDD10A Dual-Channel 10A DC Motor Driver (30A Peak) for Robotics

Description

This Cytron Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak MDD10A  is the dual-channel version which is designed to drive 2 brushed DC motor with high current up to 13A continuously. Like MD10C, MDD10A also supports locked-antiphase and sign-magnitude PWM signal.

It is using full solid-state components that result in faster response time and eliminate the wear and tear of the mechanical relay.

Features:

1. Bi-directional control of 2 brushed DC motor.
2. Support motor voltage ranges from 5V to 25V.
3. Maximum current up to 10A continuous and 30A peak (10 seconds) for each channel.
4. Solid-state components provide faster response time and eliminate the wear and tear of the mechanical relay.
5. Fully NMOS H-Bridge for better efficiency and no heat sink is required.
6. Speed control PWM frequency up to 20KHz. Support both locked-antiphase and sign-magnitude PWM operation.
7. 2 activation buttons for fast test on each channel.

Package Includes:

1 x Cytron MDD10A Dual Channel Enhanced 10Amp DC Motor Driver 30A Peak
