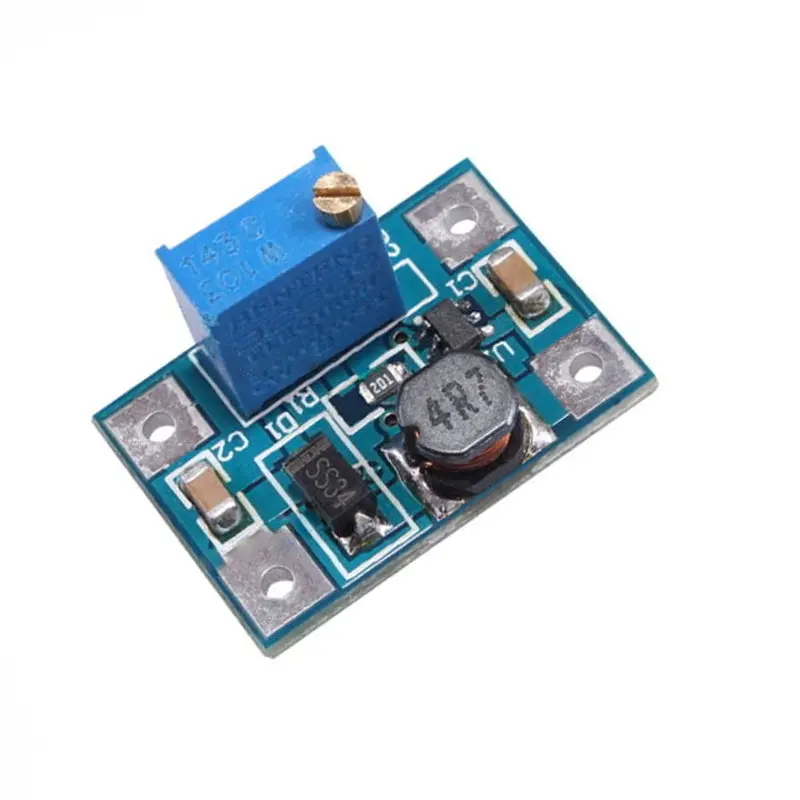

SX1308 2A High-Current Adjustable DC-DC Boost Module

Description

Features:

• Oscillation frequency: 1.2MHz
• Efficiency is as high as: 95%
• The circuit has short circuit protection, overheating protection function
• 10k to adjust potentiometer: adjust the output voltage
• Maximum input voltage: DC 2-24V
• Maximum output voltage: DC 2-28V
• Switching frequency: 1.2MHz
• Maximum current output: 2A

SX1308 booster module carrying SX1308 chip, its packaging is small, and high efficiency. The output power can be adjusted, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field-effect transistor (MOSFET), which can realize the large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply, battery power supply, equipment.
