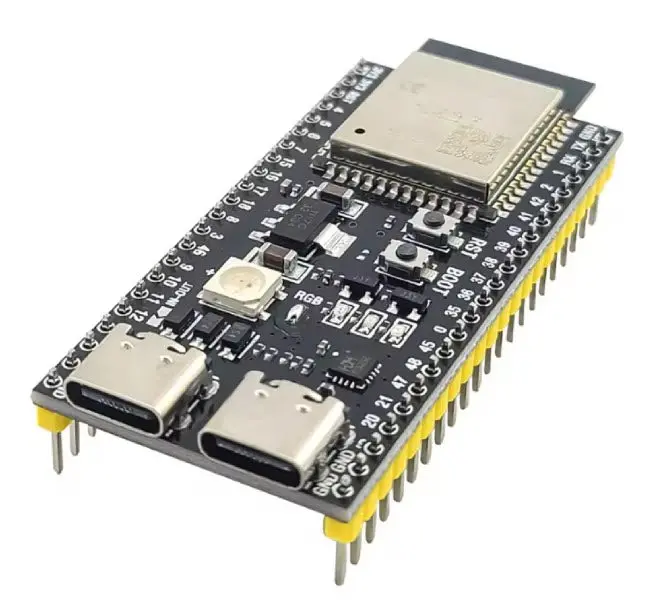

ESP32-S3-N8R2 Development Board – Wi-Fi 6 & Bluetooth 5.0, Dual USB-C, 8 MB Flash, 2 MB PSRAM

Description

Features:

• Dual Type-C USB Ports:

1. Connect peripherals, sensors, and other devices effortlessly.
2. 2. Fast data transfer and power delivery for efficient prototyping.

• High-Performance Microcontroller:

1. Powered by the SPARKLEIOT XH-S3E chip.
2. Dual cores running at up to 240 MHz for multitasking and complex computations.

• Micropython Compatibility:

1. Write and execute Python code directly on the board.
2. Rapid development and easy debugging.

Quick Introduction Step up from the classic ESP32 to the next-generation ESP32-S3-DevKitC-1. This board isn’t just an upgrade; it’s a leap forward for AI and IoT developers. Powered by the ESP32-S3-N8R2 module, it features a Dual-Core Xtensa LX7 processor running at 240MHz with vector instructions for accelerating neural networks. With 8MB of Flash and 2MB of PSRAM, it easily handles complex voice recognition, image processing, and heavy GUI libraries like LVGL.

Detailed Specifications

• SoC: ESP32-S3 (Dual-Core Xtensa 32-bit LX7, up to 240 MHz).

• Module Variant: ESP32-S3-N8R2.

• Memory:

  • Flash: 8MB (Quad SPI).

  • PSRAM: 2MB (Quad SPI).

  • SRAM: 512KB Internal.

• Connectivity:

  • WiFi: 802.11 b/g/n (2.4 GHz) + HT40.

  • Bluetooth: Bluetooth 5 (LE) + Mesh.

• USB Ports:

  • USB-to-UART: For standard debugging/programming (via CH343/CP210x).

  • Native USB (OTG): Direct USB interface for HID (Keyboard/Mouse) or Mass Storage device emulation.

• Peripherals: 45x GPIOs, RGB LED (Addressable), Boot/Reset Buttons.

• AI Acceleration: Vector instructions for accelerating AI/ML workloads.

Quality Advantage & Differentiation: Why choose the S3 over the standard ESP32?

1. AI/ML Ready: The vector instructions allow you to run TensorFlow Lite models up to 3x faster than on the original ESP32.

2. Native USB: Unlike the older ESP32, the S3 has a built-in USB controller. This means you can program it to act as a USB keyboard, mouse, or MIDI controller without external chips.

3. More Pins: It exposes significantly more GPIO pins (44+) than the standard DevKit V1, giving you freedom for display interfaces (RGB/8080) and camera modules.

Key Applications & Usage

• Voice Assistants: Capable of running offline keyword spotting (Wake Word) engines.

• Smart Displays: Drive high-resolution screens with LVGL using the ample 2MB PSRAM buffer.

• Industrial IoT: Reliable Bluetooth Mesh networking for factory automation.

• USB Gadgets: Create custom mechanical keyboards, stream decks, or security keys.
