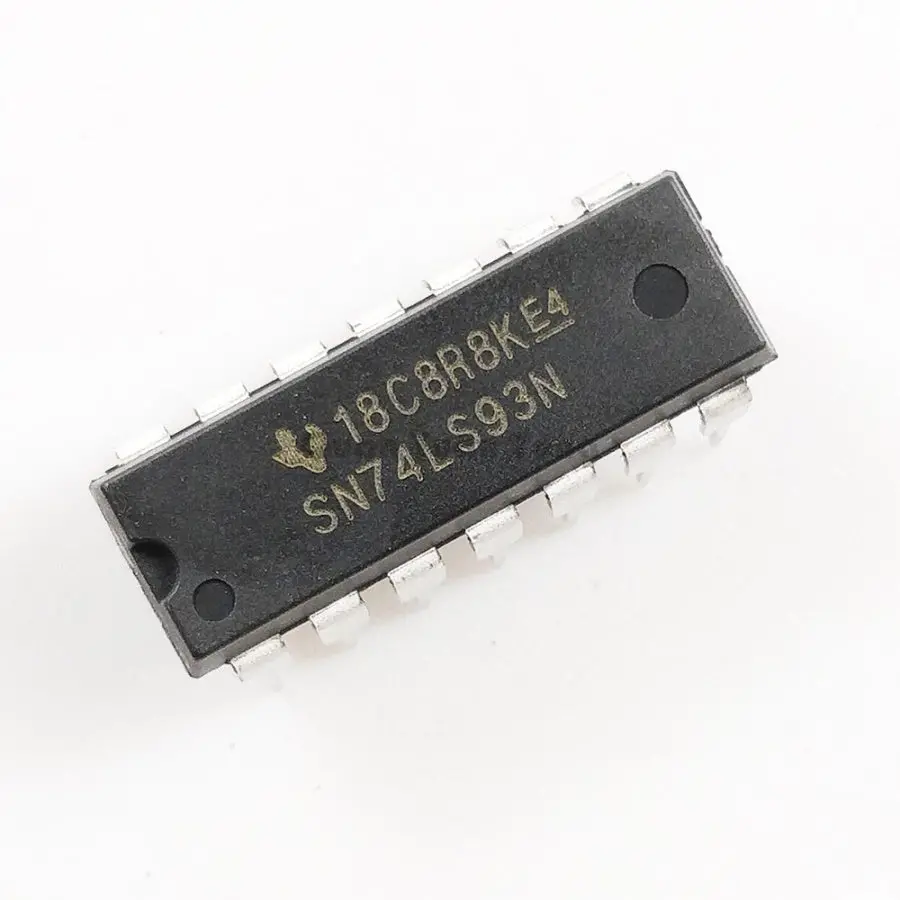

SN74LS93N 4-Bit Binary Counter IC – TTL Logic Divider (DIP-14)

Description

• Logic Family / Base Number: 74LS93; Counter Type: Binary; Clock Frequency: 42MHz; Count Maximum: 15; No. of Pins: 14Pins.

• Supply Voltage Min: 4.75V; Supply Voltage Max: 5.25V; Logic IC Family: 74LS; Logic IC Base Number: 7493

The SN74LS93N is a 4-bit Binary Counter with  four master-slave flip-flops and additional gating to provide a divide-by-two counter and a 3-stage binary counter for which the count cycle length is divide-by eight for the LS93. To use their maximum count length (decade, divide-by-twelve or four-bit binary) of these counters, the CKB input is connected to the QA output. The input count pulses are applied to CKA input and the outputs are as described in the appropriate function table. Logic Family / Base Number: 74LS93; Counter Type: Binary; Clock Frequency: 42MHz; Count Maximum: 15; No. of Pins: 14Pins. Supply Voltage Min: 4.75V; Supply Voltage Max: 5.25V; Logic IC Family: 74LS; Logic IC Base Number: 7493
