LoRa-E5 Development Kit for Long-Range Wireless IoT Applications

Description

• Voltage supply: 3-5V (Battery) / 5V(USB Type C)
• Voltage output: EN 3V3 / 5V
• Power output Up to +20.8dBm at 3.3V
• Frequency: 865
• Protocol: LoRaWAN
• Sensitivity: -116.5dBm ~ -136dBm

Package Includes:

1 x LoRa-E5 Dev Board
1 x Antenna(EU868/US915)
1 x USB TypeC (20cm)
1 x 2*AA 3V Battery Holder
—

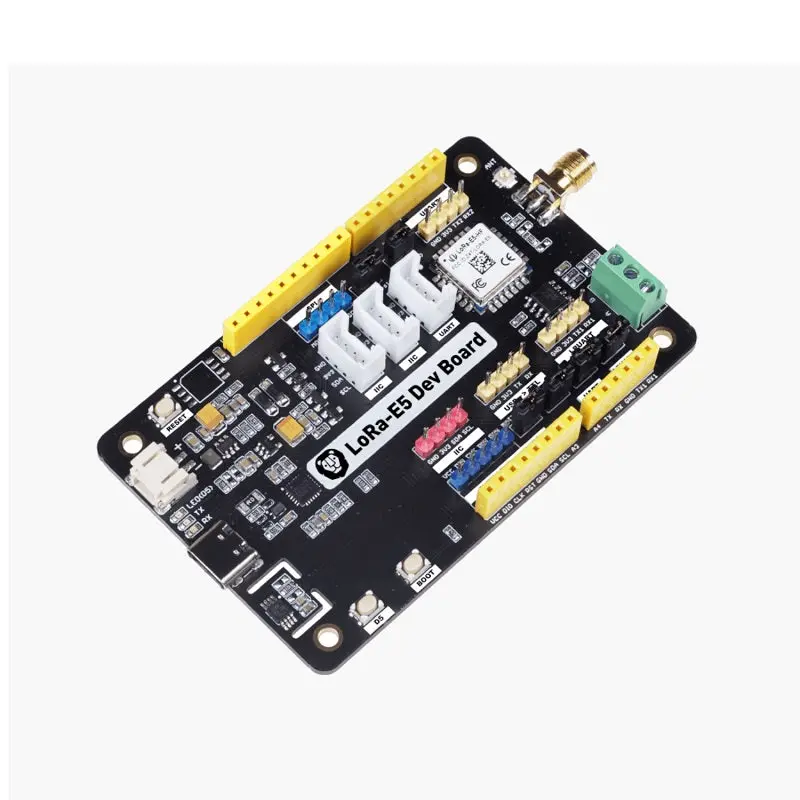

LoRa-E5 Dev Board embedded with LoRa-E5 STM32WLE5JC Module that supports LoRaWAN protocol on the global frequency band. It leads out full GPIOs of LoRa-E5 supporting various data protocols and interfaces including RS-485, Grove, male/female headers, etc. It would be a perfect choice for fast testing and rapid prototyping of your LoRa IoT projects.

LoRa-E5 Dev Board embedded with LoRa-E5 STM32WLE5JC Module, which is the world-first combo of LoRa RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip, supports both LoRaWAN and LoRa protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations.

LoRa-E5 Dev Board has a long-distance transmission range of LoRa-E5 up to 10km in an open area. The sleep current of LoRa-E5 modules on board is as low as 2.1 uA(WOR mode). It is designed with industrial standards with a wide working temperature at -40 ℃ ~ 85℃, high sensitivity between -116.5 dBm ~ -136 dBm, and power output up to +20.8dBm at 3.3V.

Applications:

1. LoRa-E5 module Easy testing
2. Rapid prototyping of LoRa devices with LoRa-E5
3. Any long-distance wireless communication application development
4. LoRa and LoRaWAN application learn and research

Features:

1. Ultra-low power consumption and high performance
2. Easy testing and rapid prototyping
3. Full GPIOs led out to rich interfaces, including RS-485, Grove, and etc.
4. Global LoRaWAN and LoRa frequency plan supported
5. Long-distance transmission range to 10km (ideal value in open area)

Specifications:

Voltage supply: 3-5V (Battery) / 5V(USB Type C)
Voltage output: EN 3V3 / 5V
Power output Up to +20.8dBm at 3.3V
Frequency: 865
Protocol: LoRaWAN
Sensitivity: -116.5dBm ~ -136dBm
Interfaces: USB Type C / JST2.0 / Grove*3(IIC*2/UART*1) / RS485 / SMA-K / IPEX
Modulation: LoRa, (G)FSK, (G)MSK, BPSK
Working temperature: -40℃ ~ 85℃
Current: LoRa-E5 module sleep current as low as 2.1uA (WOR mode)
Dimension: 85.6*54mm
