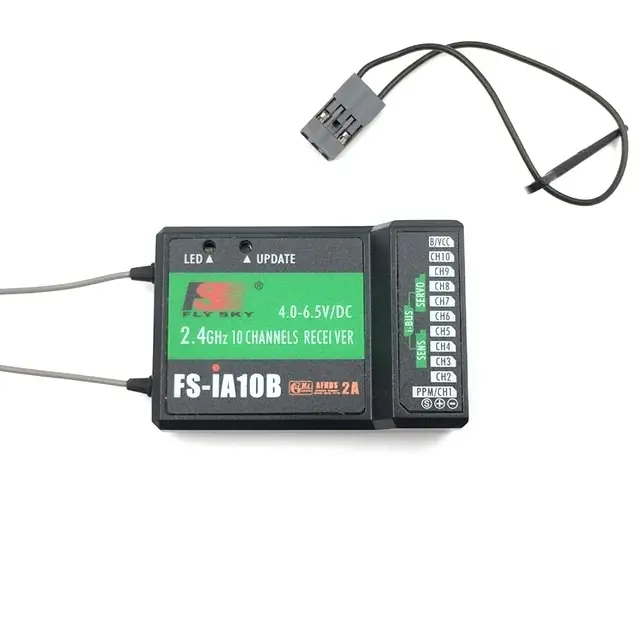

Flysky FS-IA10B 2.4GHz 10-Channel PWM/PPM/S.BUS/I.BUS Radio Receiver

Description

1. No. of Channels: 10
2. Model Type: Fixed-Wing/Glider/Helicopter
3. RF Range: 2.4055-2.475GHz
4. RF Channel: 140
5. RF Receiver Sensitivity: -105dBm
6. Bandwidth: 500KHz
7. 2.4GHz System: AFHDS 2A
8. Modulation Type: GFSK
9. Oprating Voltage: 4.0-6.5V DC

How to bind the RX (receiver) to the TX (transmitter):

1. Plug bind plug into BAT, turn on plane/heli, the LED light should flash (make sure power is connected to RX via ESC)
2. Hold down bind button on transmitter module while turning on the TX
3. The light should go steady now
4. Let go of bind button, turn off plane/heli, remove bind plug, turn off TX
5. Turn on TX and then turn on plane/heli

Compatible Radios:

1. Flysky i4
2. Flysky / Turnigy i6
3. Flysky / Turnigy i10
4. Flysky FS-i10
5. FS-GT2E
6. FS-GT2G

Note:

If you want to use PPM, remember to enable the setting on your transmitter.

Features:

1. Reliable, interference-free 2.4GHz AFHDS 2A signal operation
2. Compact, lightweight design
3. Dual antennas for reliable, interference-free operation
4. Connection ports for use with optional telemetry sensors

Package Includes:

1 x FlySky FS-IA10B Radio Receiver

1 x Bind Plug
