JX PDI-6221MG Digital Servo – 20kg-cm Torque, Metal Gears, High-Speed Response

Description

PDI-6221MG -180° Servo Motor specifications:

• Dead Band: 4μs  1500μs / 330hz
• Maximum pulse width: 500-2500us (suitable for single-chip control board)
• Angle range: actual angle 180°
• Speed (6.0V): 0.16sec/60°
• Speed (4.8V): 0.18sec/60°
• Torque (6.0V): 20.32 kg.cm
• Torque (4.8V): 17.25kg.cm

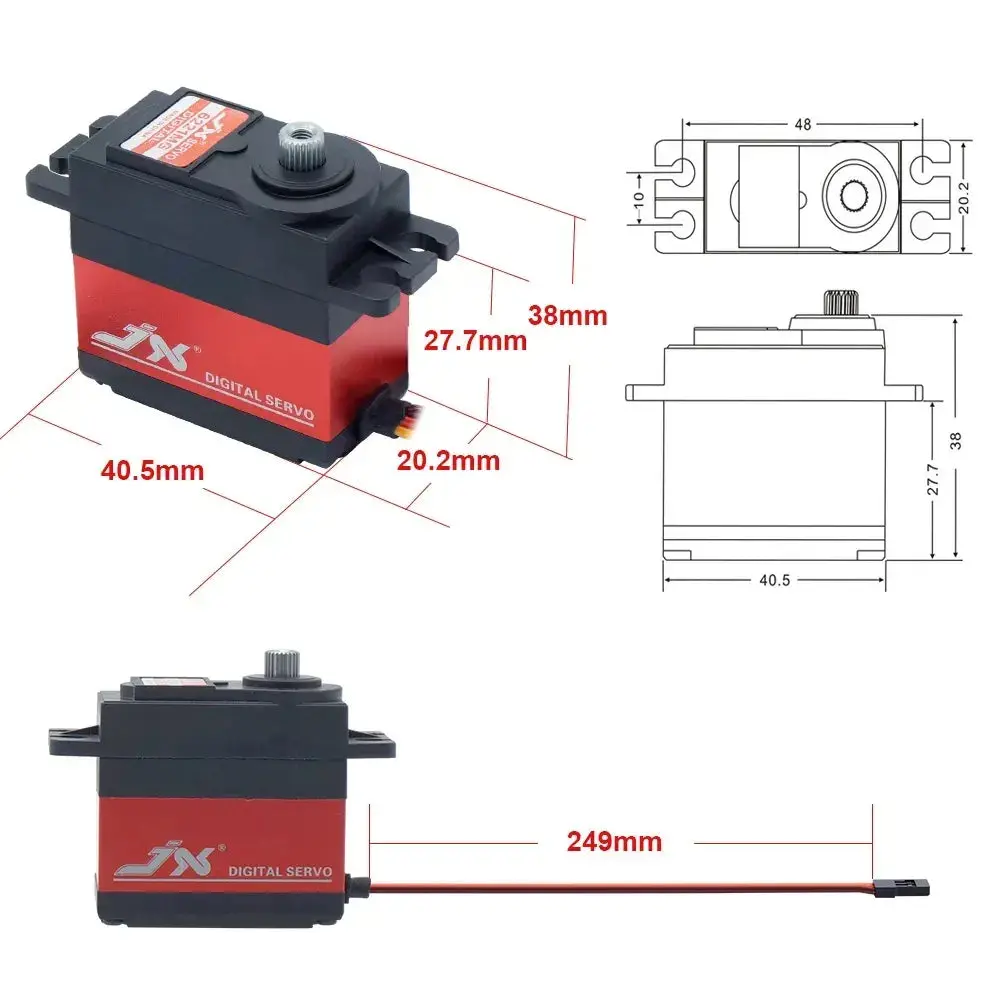

• Size: 40.5X20.2X40mm
• Weight: 62g
• Cable: JR 260 mm
• Bearing: 2BB
• Output teeth: 25T (Futaba universal)
• Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

Package Includes:

• 1 x PDI-6221MG -180° Servo Motor
