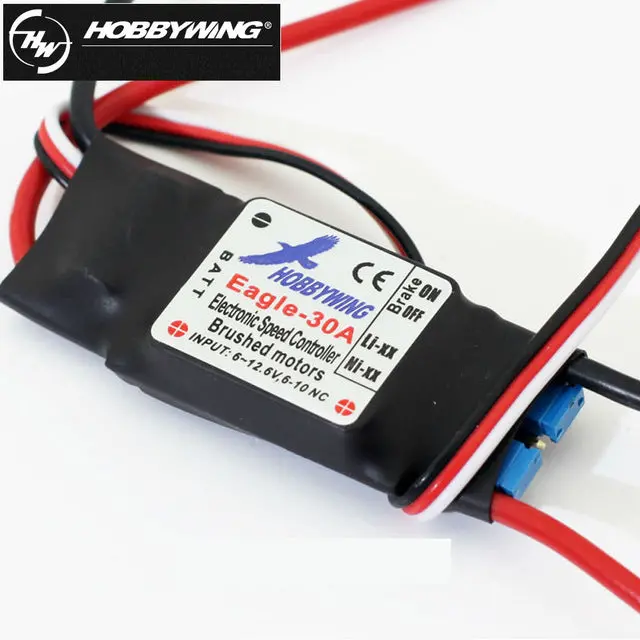

Hobbywing Eagle 30A Brushed ESC – Electronic Speed Controller for RC Models

Description

Output: Continuous 30A, Burst 40A up to 10 seconds
Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
BEC: 1A / 5V (Linear mode)
PWM Frequency: 2 kHz

Features:
Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
Brake Settings: The brake function can be enabled or disabled by a jumper connector.
Battery Type: The battery type can be chosen by a jumper connector.
Low voltage cut-off protection to prolong the battery life.
Over-heat protection to prolong the ESC life.
Throttle signal loss protection for safe flight.
Advantages:
Advanced microprocessor.
Compatible with lithium battery and nickel battery.
User programmable by using the jumper connectors.
Package Included:
1 x Hobbywing Eagle 30A Brushed ESC Speed Controller
