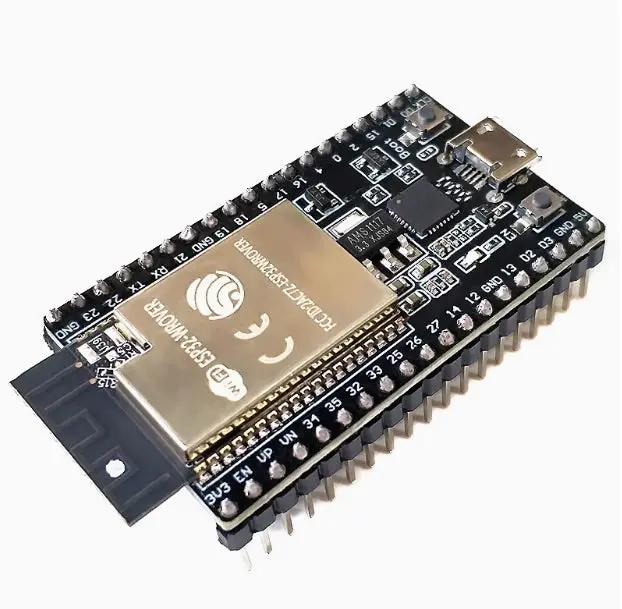

ESP32-WROVER-B Development Kit – 38-Pin Board with CP2102 USB-to-Serial Chip

Description

1. Model: ESP32-WROVER-B
2. Internal PCB onboard antenna
3. Soldered Headers Pin
4. 3.3 V Power On LED
5. USB-to-UART Bridge
6. Reset Button: Reset button.
7. Micro-USB Port
8. Boot Button
9. CP2102 Driver
10. RGB LED

Features:

• Pin Headers: All available GPIO pins (except for the SPI bus for flash and PSRAM) are broken out to the pin headers on the board. Users can program ESP32-WROVER-B chip to enable multiple functions such as SPI, I2S, UART, I2C, touch sensors, PWM etc.
• 3.3 V Power On LED:  Turns on when the USB power is connected to the board.
• USB-to-UART Bridge: Single USB-UART bridge chip provides transfer rates up to 3 Mbps.
• Reset Button: Reset button.
• Micro-USB Port: USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-WROVER-B chip.
• Boot Button Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
• RGB LED: Addressable RGB LED (WS2812), driven by GPIO18.
