Elepak SMD Crystal Oscillator Kit – 40 Units, 8 Frequencies (32.768 kHz to 20 MHz)

Description

Package Includes:

40 SMD Crystal 49S 8 Types

• 32.768 KHz – 5 Pcs
• 6 MHz – 5 pcs
• 8 MHz – 5 Pcs
• 10 MHz – 5 Pcs
• 11.0592 MHz – 5 Pcs
• 12 MHz – 5 Pcs
• 16 MHz – 5 Pcs
• 20 MHz – 5 Pcs

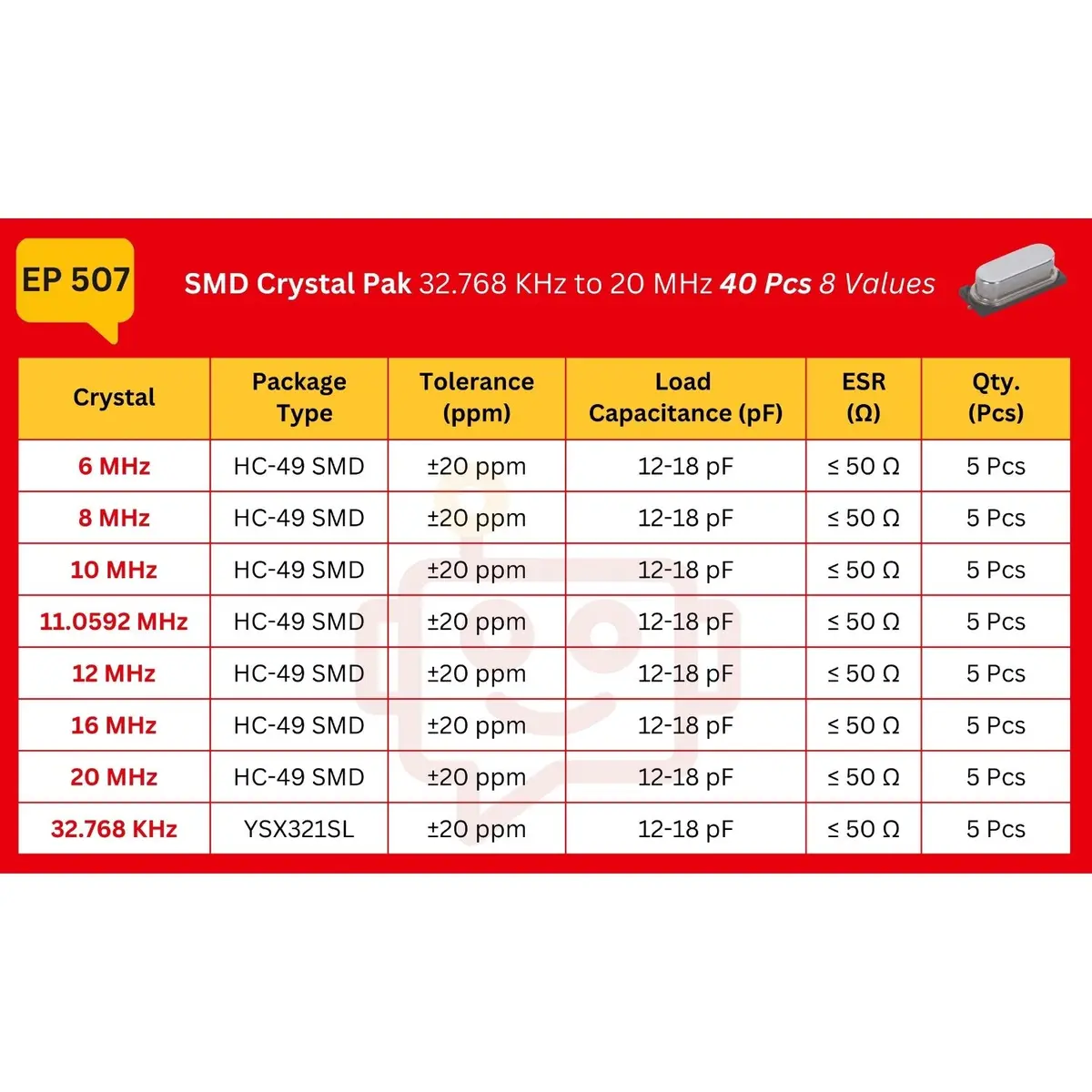

Technical Specifications:

• Type: SMD
• Model: Crystal Oscillator
• Package Type: HC – 49 / YSX321SL
• Frequency Range: 32.768 KHz, 6 MHz – 20 MHz
• Load Capacitance: 12 – 18 pF
• Tolerance: ±20% ppm
• ESR: ≤ 50 Ω
• Pak Weight: 80 gm
• Pak Dimensions: 90 x 60 x 24 mm

Description

The SMD Crystal 49S is a surface-mount quartz crystal oscillator widely used in electronic circuits for generating precise clock signals. It provides high-frequency stability and low power consumption, making it ideal for microcontrollers, communication systems, and timing applications.

This is a 40-piece assortment of SMD (Surface Mount Device) Crystals in the 49S package, featuring 8 different frequencies commonly used in electronic circuits. Each frequency is provided in a set of 5 pieces, making it a versatile collection for prototyping, circuit design, and repairs.

Crystal Symbol:



Crystal Structure:

Features:

• Compact SMD 49S Package
• High Stability & Accuracy
• Wide Frequency Range
• Low Power Consumption
• Durable & Reliable

Applications:

• Microcontrollers & Embedded Systems – Provides stable clock signals for processors like Arduino, PIC, and STM32
• Communication Circuits – Ensures accurate timing for UART, SPI, I2C, and RF modules
• Timing & Clock Generation – Used in oscillators and precision timing circuits
• Real-Time Clocks (RTC) – Powers accurate timekeeping in watches, clocks, and RTC modules
• Consumer & Industrial Electronics – Essential for stable operation in automation, displays, and control systems
