Elepak SMA Surface-Mount Diode Assortment – 80 Pieces, 7 Value Types

Description

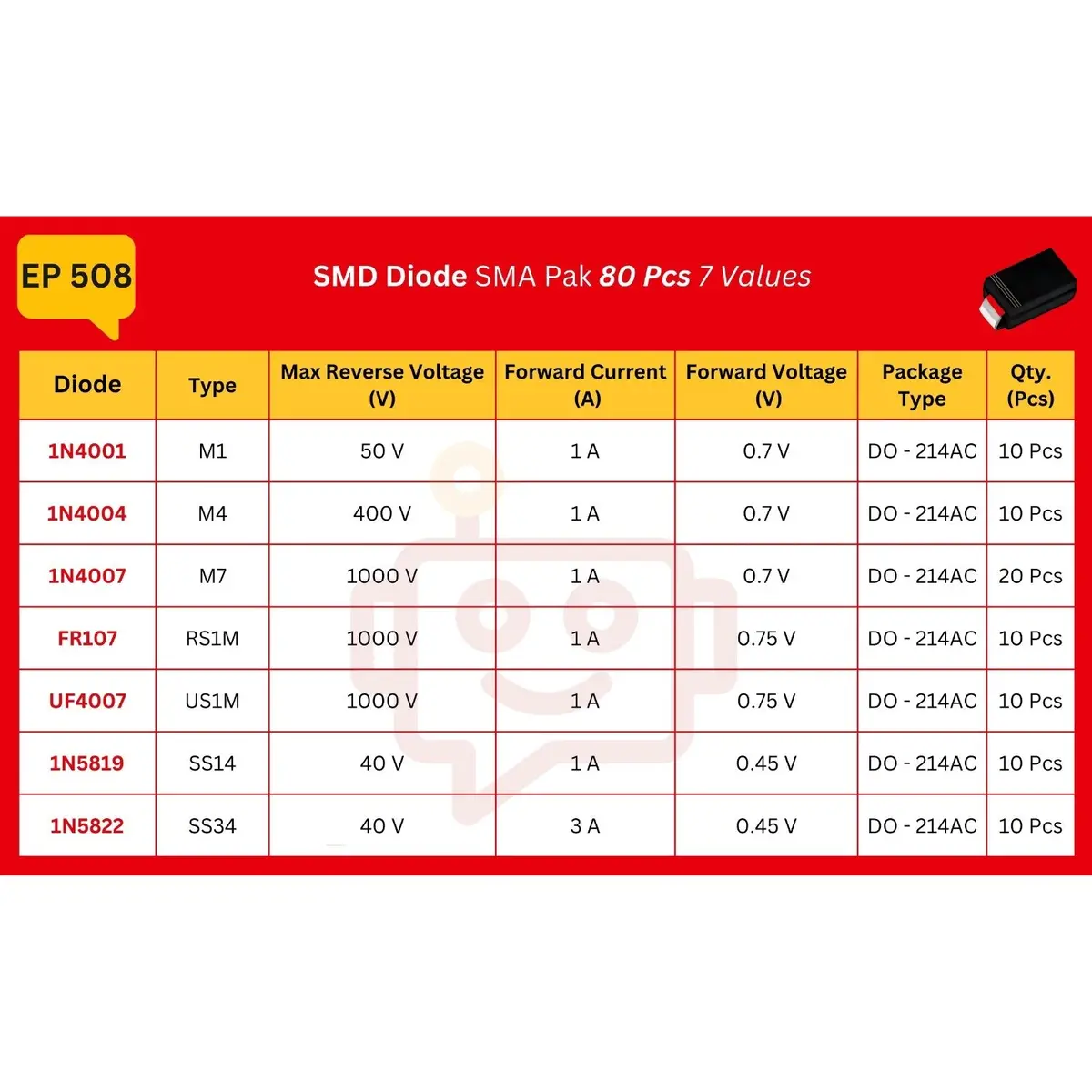

Package Includes:

80 SMD Diodes 7 Types

• M1 1N4001 – 10 Pcs
• M4 1N4004 – 10 Pcs
• M7 1N4007 – 20 Pcs
• RS1M FR107 – 10 Pcs
• US1M UF4007 – 10 Pcs
• SS14 1N5819 – 10 Pcs
• SS34 1N5822 – 10 Pcs

Technical Specifications:

• Type: SMD
• Model: SMA Diode
• Package Type: DO – 214AC
• Max. Reverse Voltage: 40 V – 1000 V
• Forward Current: 1 A – 3 A
• Forward Voltage: 0.45 V – 0.75 V
• Pak Weight: 60 gm
• Pak Dimensions: 90 x 60 x 24 mm

Description

SMD diodes are compact semiconductors for rectification, voltage regulation, and signal protection in modern circuits. They enable efficient power conversion with minimal loss and high-speed operation.

• General-Purpose Rectifier Diodes: Used for low-frequency AC-DC conversion, handling high voltage/current but with slower switching.
• Fast Recovery Diodes: Offer shorter reverse recovery times (~100-500 ns) for switching power supplies and motor drivers.
• Ultra-Fast Recovery Diodes: Provide very low reverse recovery times (~25-100 ns) for high-frequency power circuits.
• Schottky Diodes: Feature fast switching and low voltage drop (0.2V–0.4V) for efficient power and RF applications.

This assortment pack consists of 80 Surface-Mount Device (SMD) diodes, categorized into 7 different types, commonly used in rectification, fast recovery, and Schottky applications. These diodes are essential for various electronic circuits, including power supplies, voltage regulation, and signal protection.

Diode Symbol:



Diode Structure:

Features:

• Compact and efficient
• Optimized switching
• Low power dissipation
• High reliability and thermal performance

Applications:

• AC-DC Rectification – Converts AC to DC in power supplies, adapters, and chargers
• Switching Power Supplies (SMPS) – Enhances efficiency in high-frequency voltage conversion
• Voltage Clamping & Protection – Safeguards circuits from voltage spikes and surges
• High-Speed Signal Processing – Used in RF circuits and communication devices
• Reverse Polarity Protection – Prevents damage in battery-powered and automotive circuits
