Elepak SMD 0603 Ceramic Capacitor Kit – 280-Piece, 16 Values (10pF–22µF)

Description

Package Includes:

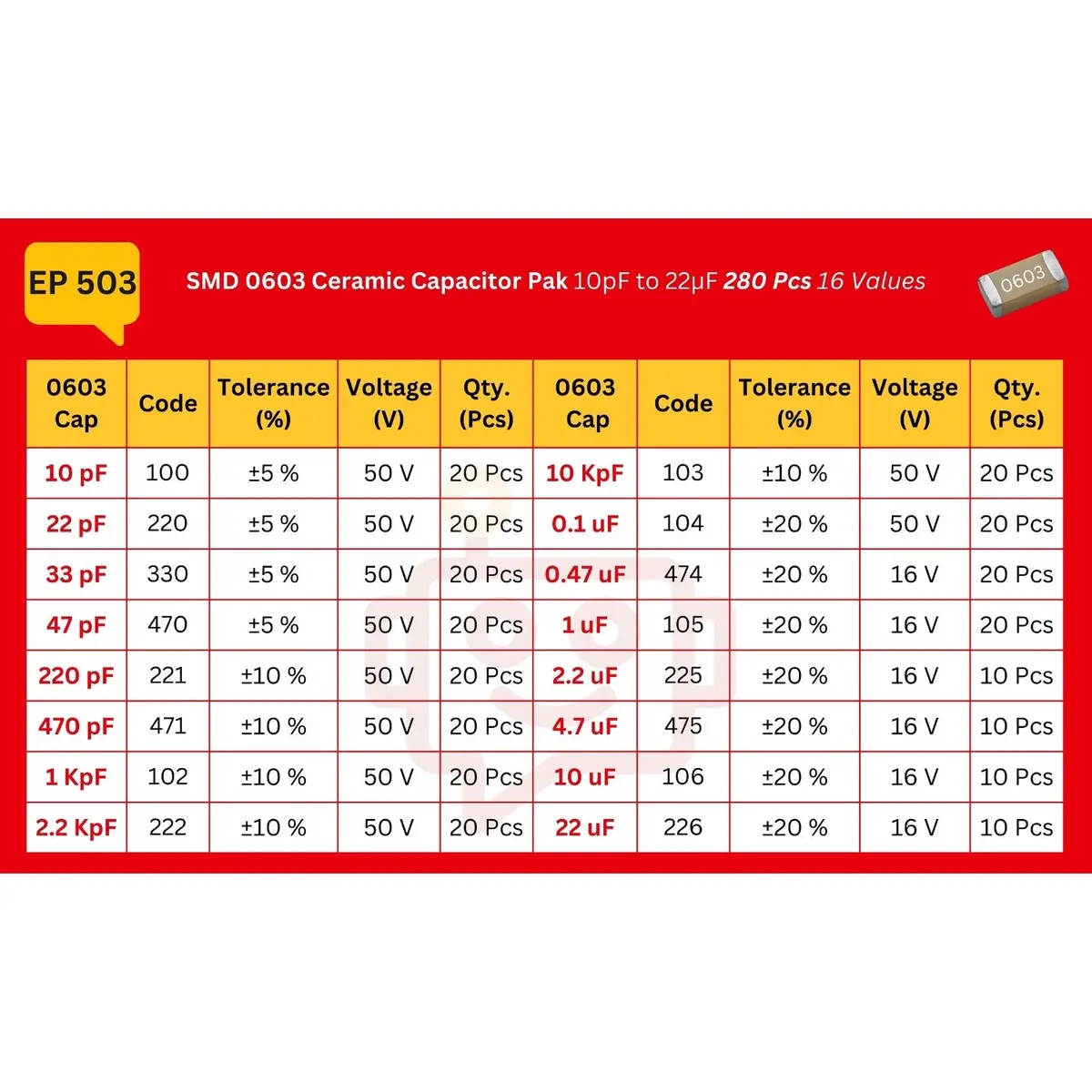

280 SMD 0603 Capacitor 16 Types

• 10pF – 20 Pcs
• 22pF – 20 Pcs
• 33pF – 20 Pcs
• 47pF – 20 Pcs
• 220pF – 20 Pcs
• 470pF – 20 Pcs
• 1nF (102K) – 20 Pcs
• 2nF (222K) – 20 Pcs
• 10nF (103K) – 20 Pcs
• 1µF (104M) – 20 Pcs
• 47µF (474M) – 20 Pcs
• 1µF (105M) – 20 Pcs
• 2µF (225M) – 10 Pcs
• 7µF (475M) – 10 Pcs
• 10µF (106M) – 10 Pcs
• 22µF (226M) – 10 Pcs

Technical Specifications:

• Type: SMD
• Model: 0603 Capacitor
• Package Type: 0603
• Capacitance Range: 10 pF – 22 µF
• Voltage Ratings: 16 V, 50 V
• Tolerance:
  • ±5% for high precision
  • ±10% for standard tolerance
  • ±20% for general-purpose use
• Pak Weight: 60 gm
• Pak Dimensions: 90 x 60 x 24 mm

Description

These are 0603 (0.06 x 0.03 inches) Surface-Mount Device (SMD) capacitors, which are commonly used in electronic circuits. The 0603 package size is one of the most compact and widely used sizes for surface-mount components, ideal for high-density circuit boards.

This pack consists of 280 pieces of 0603 SMD (Surface-Mount Device) capacitors in 16 different types, providing a variety of capacitance values, voltage ratings, and tolerances. It is designed for general-purpose use in a wide range of electronic applications, especially for prototyping, repair, or small-scale production. The capacitors come in a compact and organized package, with each type clearly marked and labelled for easy identification.

0603 Capacitor Symbol:



0603 Capacitor Structure:

Features:

• Wide range of capacitance values
• Multiple voltage ratings
• Compact 0603 package size
• High reliability
• Convenient for prototyping and repairs
• Cost-effective for small-scale projects
• Easy identification with clear markings
• Suitable for high-frequency applications
• Space-saving design for compact circuits
• High compatibility with automated assembly systems

Applications:

• Bypass and Decoupling: Prevents voltage fluctuations and noise in power supply circuits
• Signal Filtering: Removes unwanted noise or smooths signals in high-frequency circuits
• Energy Storage: Stores and releases electrical energy in power supply and timing circuits
• Oscillators and Timing Circuits: Used in frequency control and timing applications
• Coupling and Decoupling: Transfers AC signals while blocking DC in communication circuits
• Power Supply Smoothing: Smooths voltage fluctuations in power supplies and regulators
• Signal Coupling in Audio Circuits: Passes AC signals while blocking DC in audio equipment
• RF Circuits: Filters signals in radio frequency circuits for better performance
