CNC & 3D Printer Mechanical Endstop Switch – Normally Open (NO) Limit Sensor

Description

1. Wire type: 22AWG
2. Working voltage: 300V
3. Working Current: 2A
4. Temperature resistance: 80° C

5. Cable length: 70cm

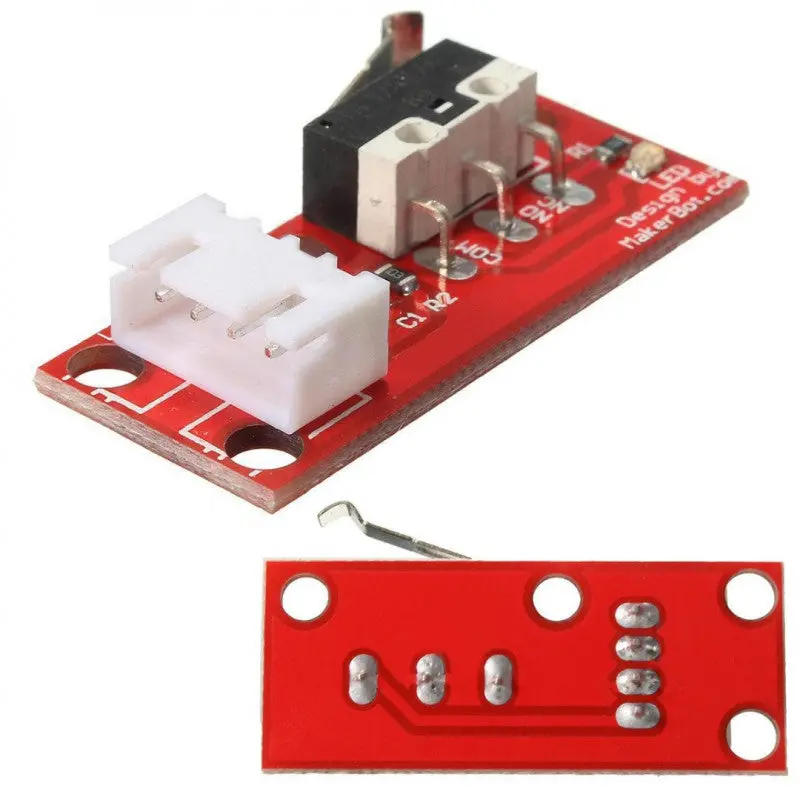

CNC 3D Printer Mech End-stop Switch uses a lever switch to detect when it is activated. The switch is wired up so that when activated, it pulls the signal to LOW. There is also an LED on the board that will light up when the switch is activated. It uses a standard 4 pin 100 pitch header and accepts a standard, old-style CD-ROM audio connector cable.

The mechanical end-stop is a simple solution to a simple problem. We want to be able to detect when an X/Y/Z stage has reached its minimum or maximum. Instead of messing with flags or complicated light beam interruption, we use a mechanical switch.

Features :

1. Not easy to pull off, plug it convenient, for ease of use, plug the other side to do the one, you can use the direct plug.
2. Quality switching elements.
3. Customized high-quality connection wires using 22AWG copper wire with ratings of current 2A, 300V voltage.
4. An insulating layer over a wide range of temperatures, up to 80 degrees.

Package Includes :

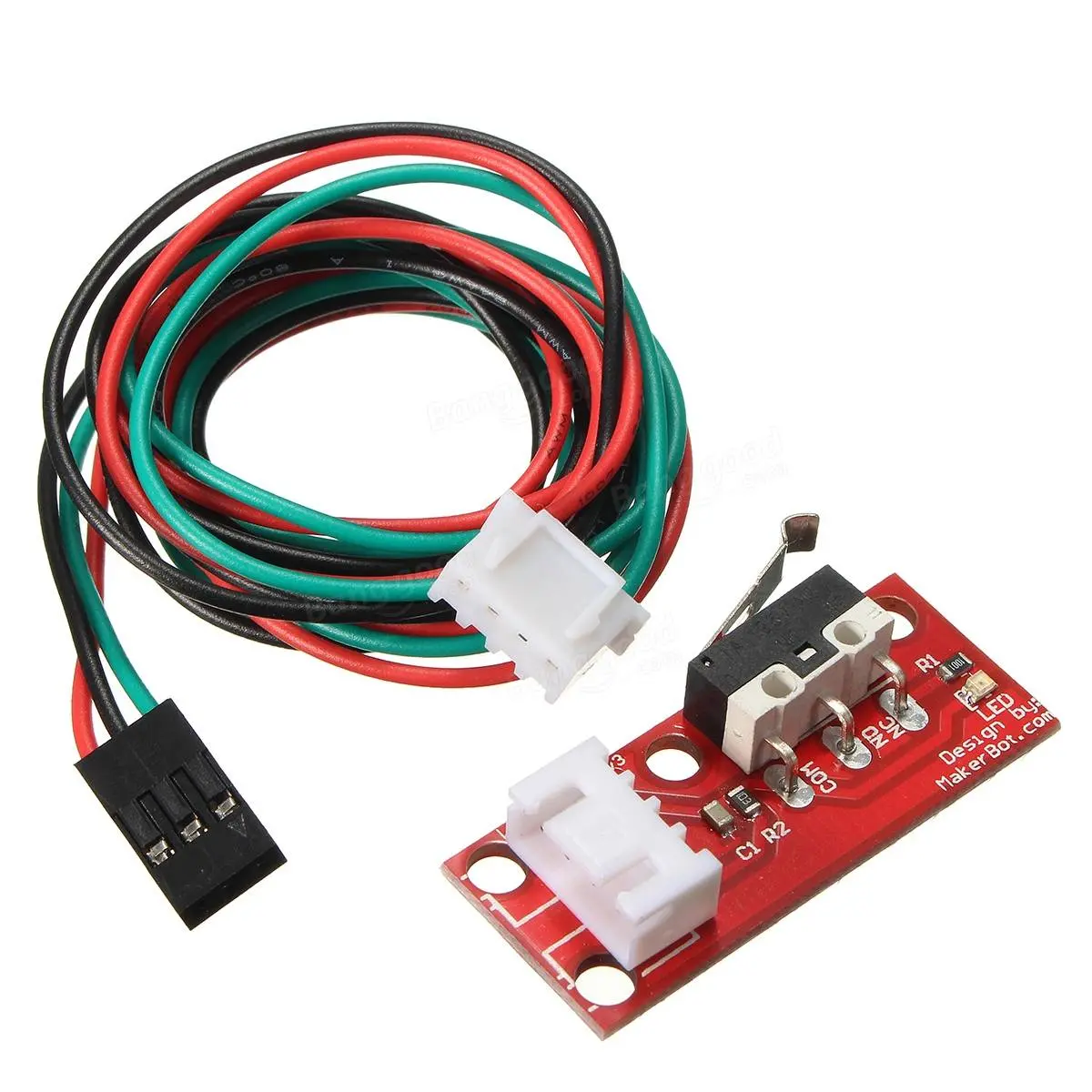

1 x CNC 3D Printer Mech End stop Switch.

1 x 3 Pins cable.
