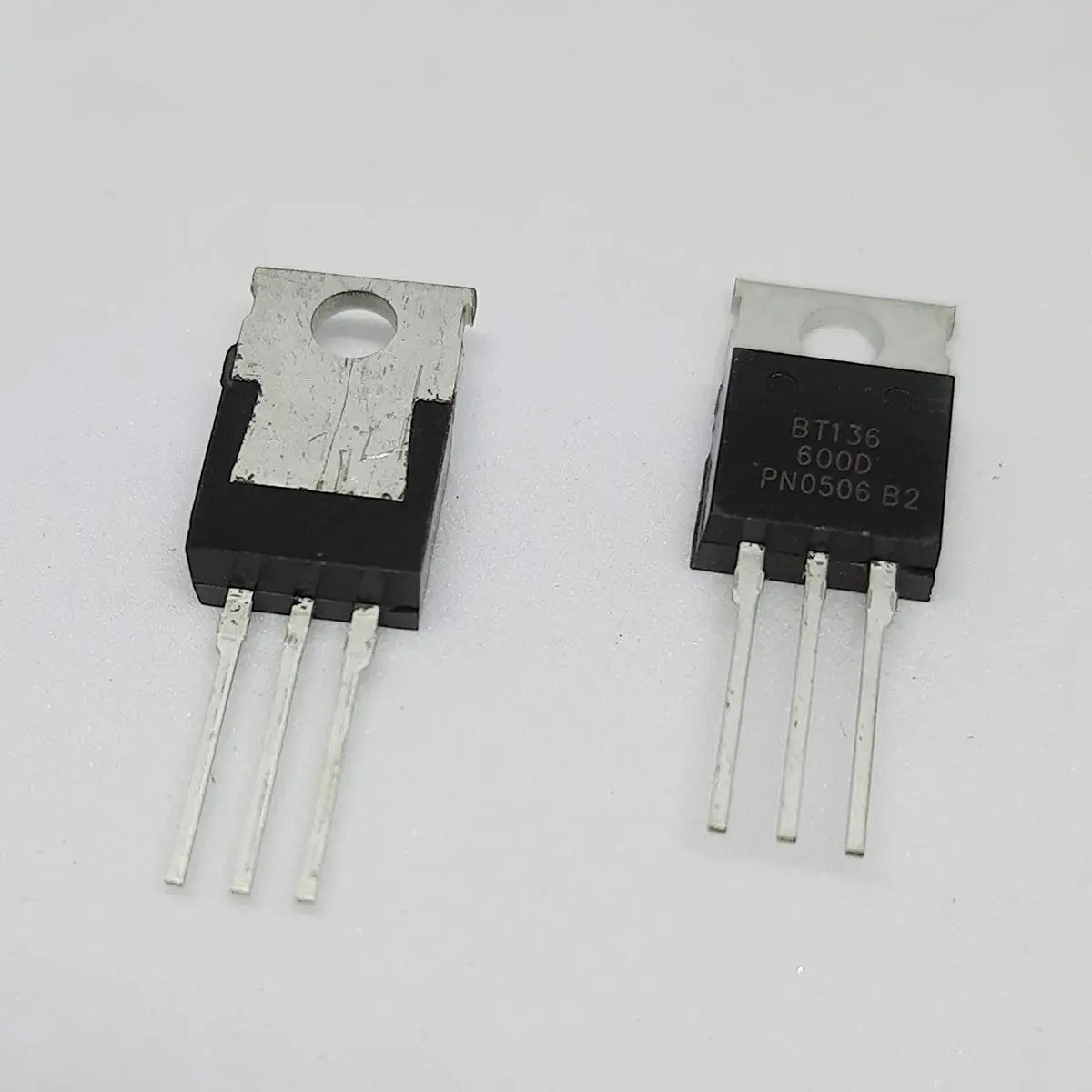

BT136-600D Logic-Level Triac – 4A, Sensitive Gate, 600V Rating

Description

BT 136 600 V 4A Triac TO-220 IC

Bt136 is a range of TRIACs, triodes for alternating current is called bidirectional thyristors. Triac makes a convenient switch to AlterNate current circuit.

PRODUCT SPECIFICATIONS

• Product Type: TRIAC SCR
• IC Number: BT136
• Number of Pins: 3
• Package type: TO-220B
• Dimensions: 10.3 mm x 4.7 mm x 9.4 mm
• Package contains: 1 x BT136 IC

SPECIFICATION

• The rated average on state current: 4 A
• Maximum gate trigger current: 10 mA
• Maximum holding current: 10 mA
• Surge current rating: 27 A
• The repetitive peak of state current: 0.5 mA
• Maximum gate trigger voltage: 1.5 Volts
• Repetitive peak reverse voltage: 600 Volts
• Repetitive peak forward blocking voltage: 600 Volts
• The peak on state voltage: 1.7 Volts

APPLICATION

• AC Switching
• Control application with the current rating from 1 A to 40 A.
• Motor control
