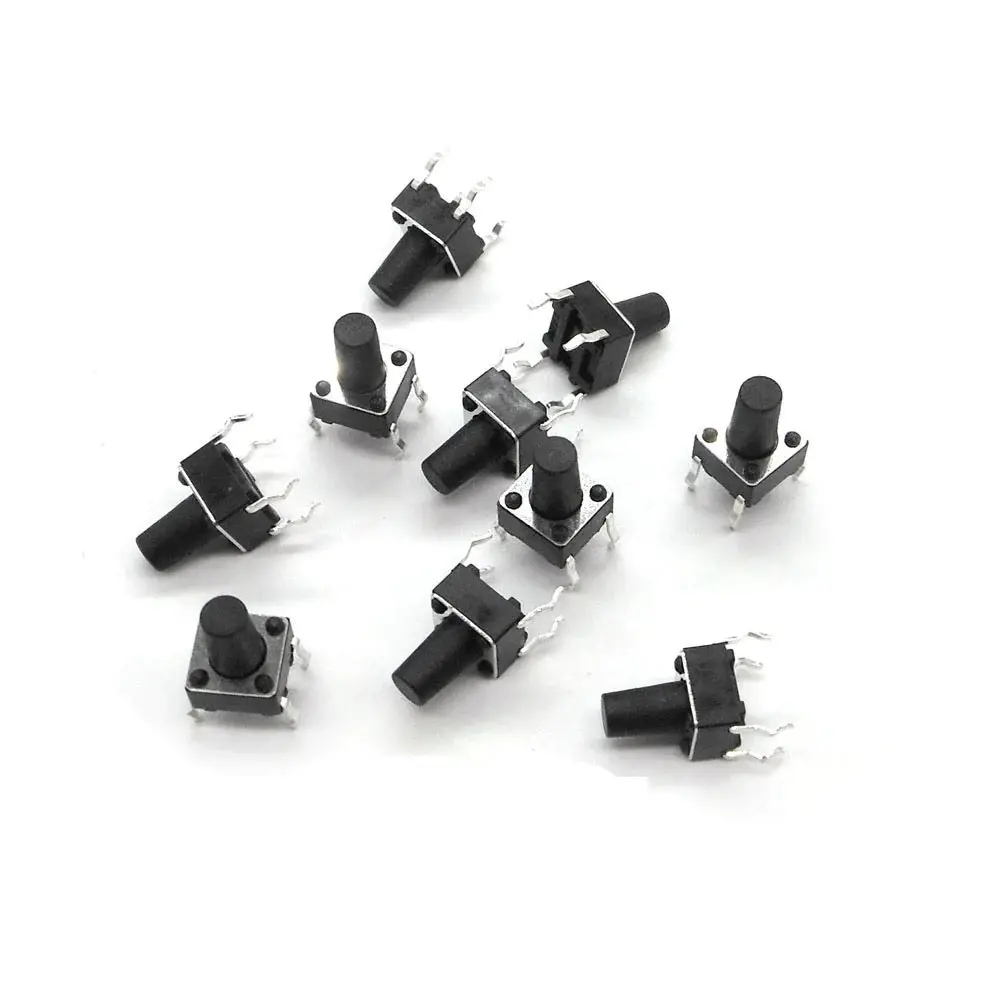

6×6×7mm 4-Pin Tactile Momentary Push Button – Reset Switch (Single Unit)

Description

• Switch Type Momentary
• Contact Type Through-hole
• Contact Material Brass
• Contact Resistance 50mΩ
• Insulation Resistance (MΩ) 100
• Operating Temperature Range (°C) -20 to 70
• Operation Force 1.56 +/- 0.5 N
• Operation Stroke 0.25+0.2/-0.1mm
• Body Material Plastic
• Mech. & Electrical Lifecycle 50000
• Protection Standard IP65
• Length (mm) 6
• Width (mm) 6
• Height (mm) 7
• Weight (gm) 1

The mini pushbutton is a small and cheap single pole single through switch (SPST) that can be soldered on a PCB. Usually used as a reset button, this push button closes a circuit when you press on it. It is rated at 50mA. By default, it is not breadboard friendly but its legs are flexible enough to be twisted to fit on a breadboard.

This switch has four connections A, B, C and D. A and D are connected together and B and C are also connected together. When the switch is pushed, all connections (A,B,C,D) are connected together. You can use a multimeter in continuity mode to see what pin are connected together.
