Description

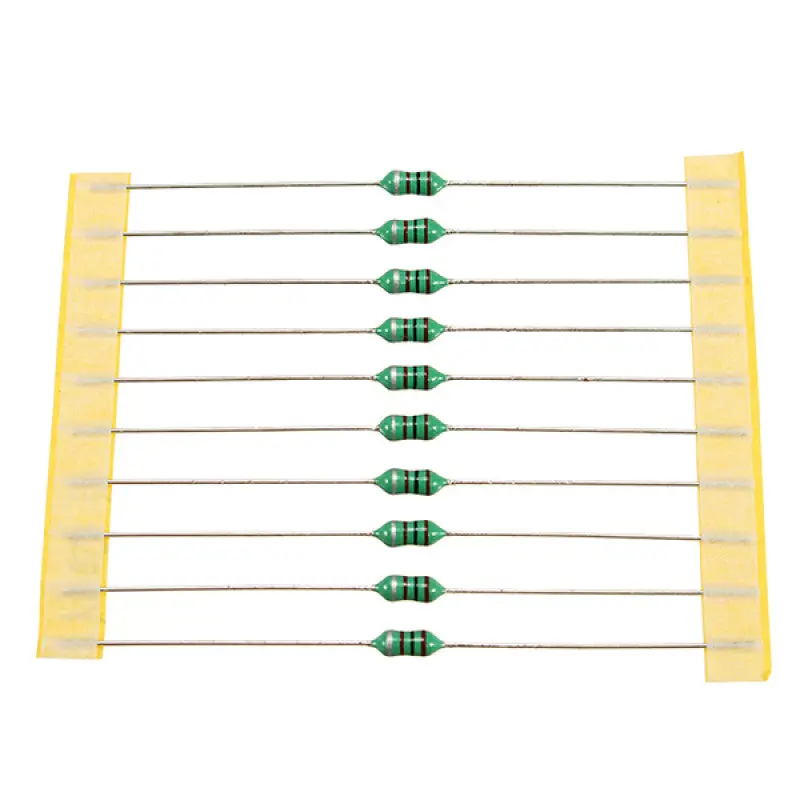

10mH 1/2W 0410 Color Ring Axial Lead Type Inductor is a small lightweight inductor. Its compact design is ideal to use in electronic devices. The inductor has a coating of epoxy resin which is resistant to humidity and thus improves the life of the same.
Additionally, this inductor has relatively long leads which provide the ability to bend to be automatically inserted into the PCB. This inductor can provide a high resonant frequency along with a high Q factor. It is also RoHS compliant.
Applications:
- Electronics Products
- Communication Equipment
- Computer Devices
- TV, VCR, Radios and so on.
Note:
Images for reference only. The actual product is as per product title.
Specifications:
- Design to be compact, small and light-weight
- Contribute to be high Q and self-resonant frequency
- Coating epoxy resin for long-life humidity resistance
- RoHS Compliant
Additional information
| Inductance |
10mH |
| Tolerance(%) |
10 |
| Mounting Type |
Through Hole |
| DC Resistance (DCR)(m) at 20C |
250 |
| Current Rating (A) |
0.6 |
| Frequency(Hz) |
7.96M |
| Operating Temperature Range (C) |
-40 to 85 |
| Length (mm) |
7 |
| Width (mm) |
3 (Body Diameter) |
| Weight (gm) |
5 |
Package Includes:
10 x 10mH 1/2W 0410 Color Ring Axial Lead Type Inductor.
