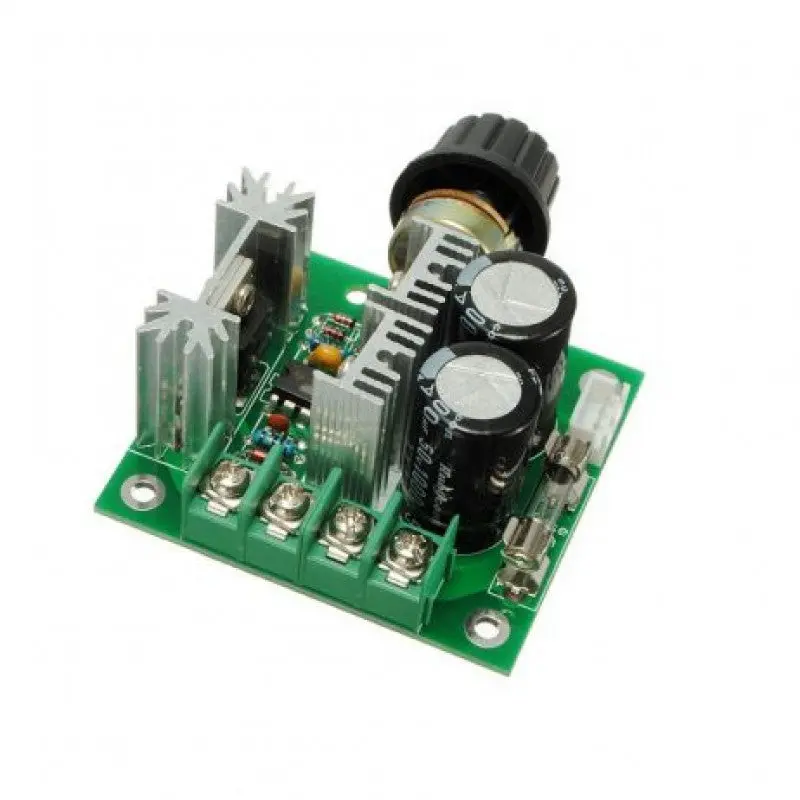

10A PWM DC Motor Speed Controller – Adjustable 12V–40V Brushed Motor Governor

Description

• Input supply voltage: DC 12V-40V
• The maximum output power: 400W
• The maximum continuous output current:8A
• Static Current:0.02 A ( Standby )
• PWM frequency: 13kHz
• Duty Cycle adjustable: 10%-100%

The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.

Note:

This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.

Features:

• Control the speed of a DC motor with this controller.

• High efficiency, high torque, low heat generating.

• With reverse polarity protection, high current protection.

• Control voltage over-voltage protection function

• The overload and short circuit protecting current is 10A

• Working Voltage: DC 12V – DC 40V.

• Control Power:0.01 – 400W.

• Static Current:0.02 A ( Standby ).

• PWM Duty Cycle:10% -100%.

Package Includes:

1 x 12V-40V10A DC Motor PWM Speed Control Switch Governor
