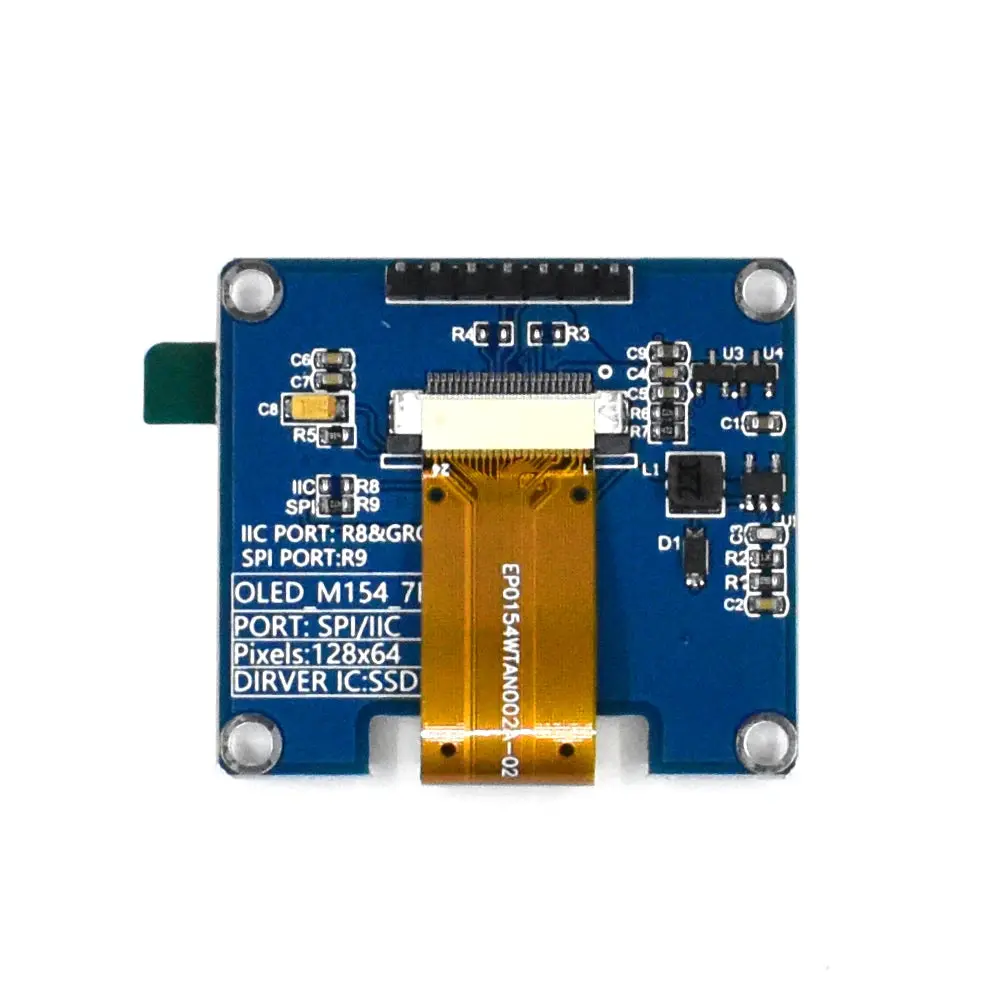

1.54-Inch OLED Display Module | 128×64 Resolution | SSD1309 Driver | 7-Pin SPI Interface

Description

• Product Name 1.54″ inch OLED Display screen Module
• Driver IC SSD1309
• Color White/Blue/Yellow/Green
• Resolution 128×64
• Interface IIC, SPI
• Pins 7P
• Operating Temperature -30~70℃
• Storage Temperature -40~80℃

Pin Details:

1 GND Power ground
2 VDD Power Positive (2.8-5.5V)
3 SCL clock line
4 SDA data cable
5 RES reset line
6 DC data/command
7 CS Chip Select

Package Includes:
1 x 1.54 Inch OLED Module 128*64 SSD1309 Driver 7 Pin SPI Interface
