1.8-Inch TFT LCD Display Module – SPI Interface, Full-Color Screen for Embedded Projects

Description

• Display Size: 1.8″
• Driver IC: ST7735
• Input Voltage (V): 3.3 to 5
• Pixel Resolution: 128 x 160
• PCB Size (mm): 62×38 (LxW)
• Interface Type: SPI

The 1.8-inch TFT LCD Module features a 128×160 pixel color display and uses a 4-wire SPI interface for communication. With its built-in pixel-addressable frame buffer, this module is compatible with a wide range of microcontrollers.

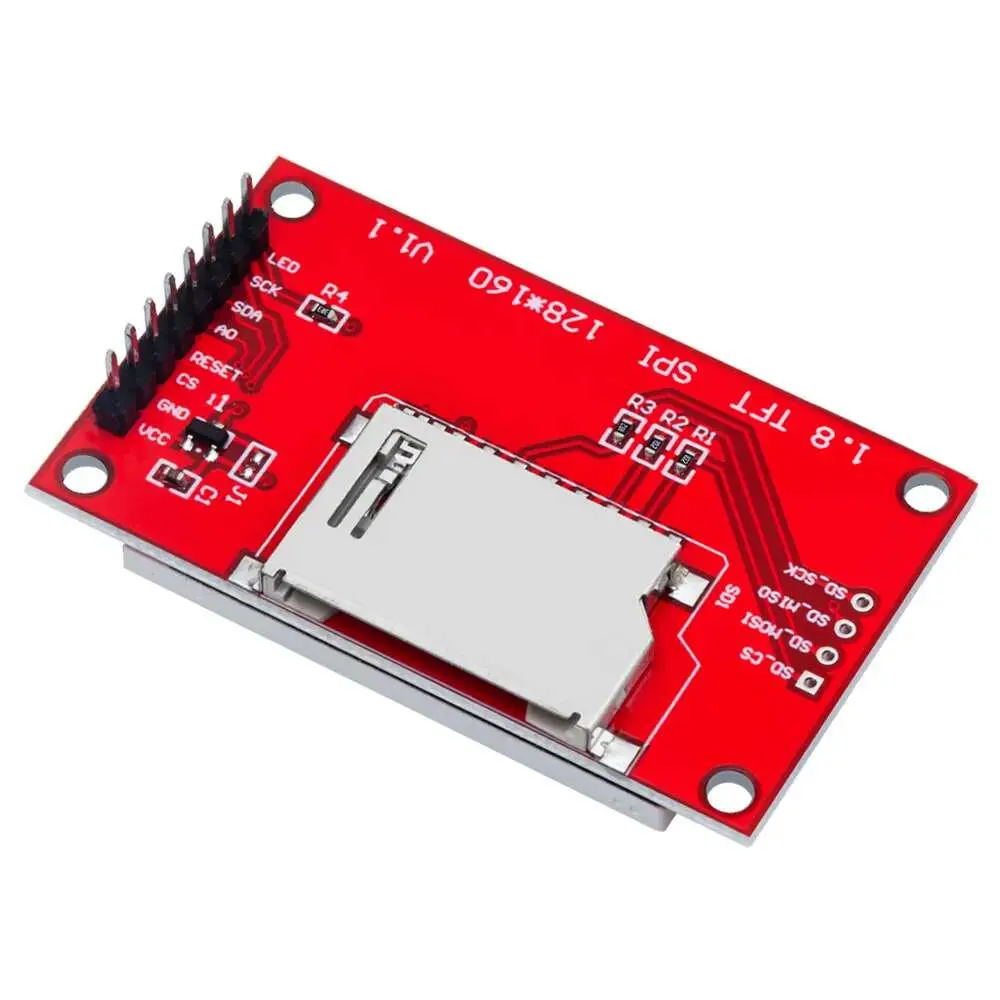

The breakout board comes with the TFT display pre-soldered, using a delicate flex-circuit connector. It also includes an ultra-low-dropout 3.3V regulator and a 3/5V level shifter, allowing the module to be powered and interfaced with both 3.3V and 5V logic systems.

Features :

• 1.8-inch serial SPI colour display module
• Support analogue SPI and hardware SPI
• The LCD has a wide viewing angle, the contrast is also very suitable.
• Good quality display.

Specifications:

• Display Size (inch)-    1.8
• Input Voltage (V)-    3.3 to 5
• Pixel Resolution-    128 x 160
• PCB Size ( L x W ) mm-    57 x 34
• Interface Type –   SPI

Package includes:

1 x 1.8 Inch TFT LCD Module 128 x 160
