ZMCT103C Current Sensor Module – 5A AC/DC Detection with Isolation (HW670 Compatible)

Description

Features:

• Current Ratio: 5 A:5 mA
• Rated Primary Current at 50/60 Hz: 5A
• Winding D.C. Resistance at 20 °C: 155Ω
• Maximum Primary Current at 50/60 Hz: 20A
• Transformer Turns Ratio: Np: Ns = 1000:1

Features/Specs:

• Current Sensor Part No: ZMCT103/ZHT103
• Rated input Current: 5A
• Rated Output Current: 5mA
• Change Ratio: 1000:1
• Module Supply Voltage: 5 ~ 30VDC
• Phase Difference: less than or equal to 20′ (100Ω)
• Linear Range: 0-10A (100Ω)
• Linearity: 0.2%
• Precision level: 0.2
• Isolation withstand voltage: 3000V
• Working temperature: -40°C ~ 70°C
• Sealing material: Epoxy Resin
• Length: 38 mm
• Width: 25 mm
• Height: 23 mm
• Weight: 10 gm

Application:

• Measuring AC currents
• Monitor any current surges
• Ground fault detection
• Household electrical equipment

Package Include:

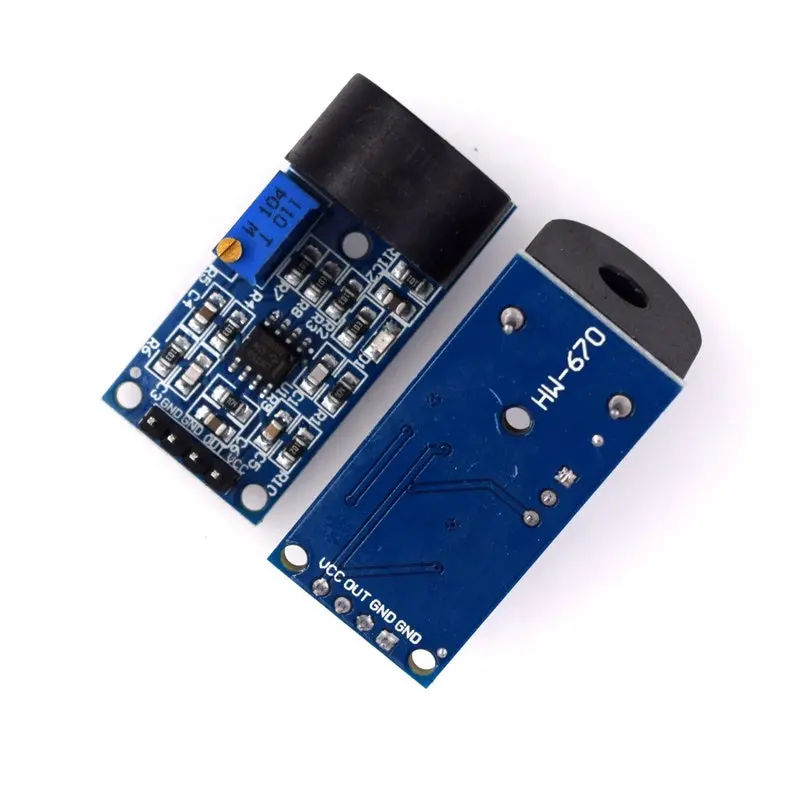

• 1 x ZMCT103 – 5A Range Single Phase AC Active Output Onboard Precision Micro Current Transformer Module
