ZK-DP2 15W DC-DC Adjustable Boost-Buck Converter – Wide Input/Output Voltage Range (3.3V–30V)

Description

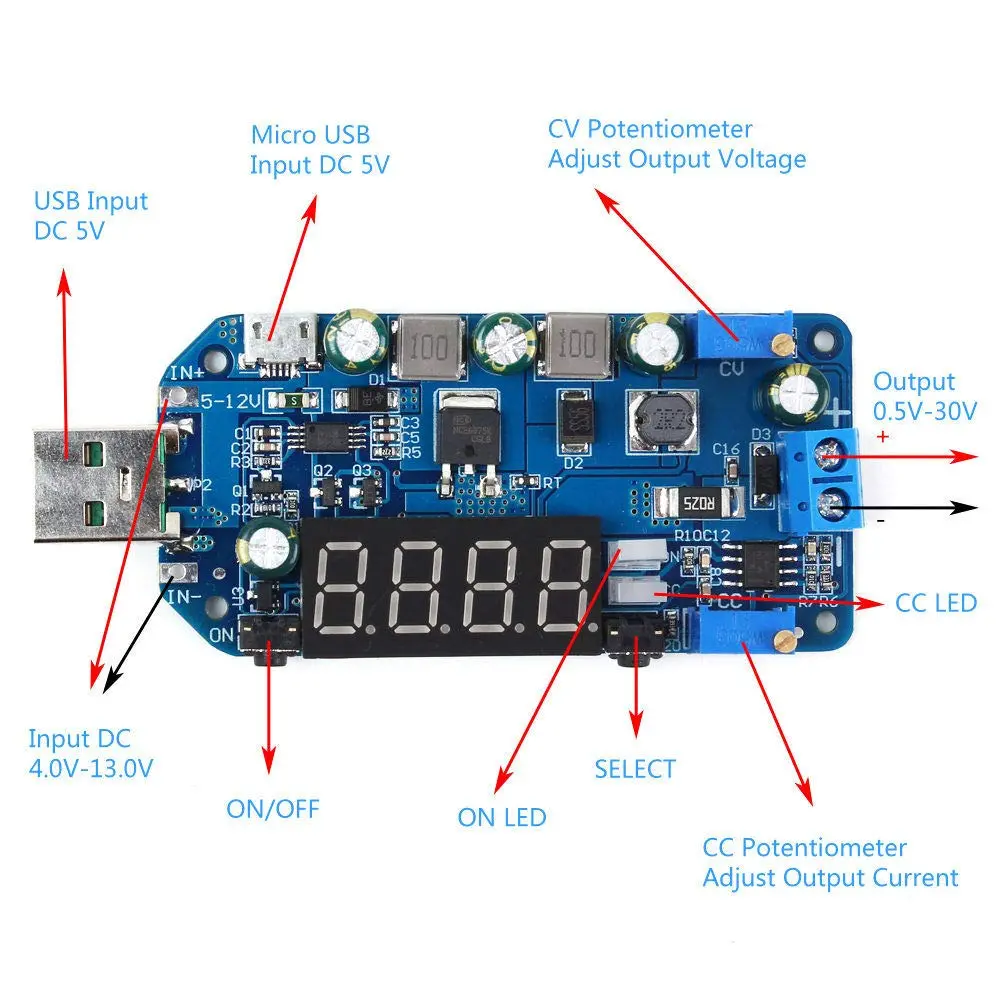

ZK-DP2 is a DC adjustable constant voltage constant current step up/down power
supply module with LED digital tube display.Display output voltage, output current and
output power.Adjustable output voltage and current.Set output current to meet the
require.It can be used as ordinary buck power supply module, charger and LED
constant current driver.Simple and efficient, practical.

Features:

1>.Support short circuit protection
2>.Support anti-backflow protection
3>.Support constant voltage constant current adjust
4>.4-Bit digital tube display
5>.Three input power modes
6>.Support over-current protection
7>.Support over-voltage protection
8>.Support over power protection
9>.Support over temperature protection
10>.Support charging mode
11>.High resolution
12>.Multiple parameters can be displayed in turn

Parameters:

1>.Product Name:ZK-DP2 USB 2A Step Up/Down Power Supply Module with shell
2>.Product Number:ZK-DP2
3>.Input Voltage for Pads:DC 4.0V-13.0V
4>.Input Voltage for USB:DC 5.0V
5>.Output Voltage:DC 0.5V-30.0V
6>.Output Current:2A
7>.Output Power:15W(Max)
8>.Voltage Display Precision:+/-0.1V
9>.Voltage Display Resolution:0.1V
10>.Current Display Range:0~2.2A
11>.Current Display Precision:+/-0.05A
12>.Current Display Resolution:0.001A
13>.Capacity Precision:0.00W~15.0W
14>.Protection Temperature Threshold:100℃
15>.Conversion efficiency:95%
16>.Working current:30mA
17>.Short Circuit Protection:Yes
18>.Anti-backflow Protection:Yes
19>.Over-Current Protection:Yes
20>.Over-Voltage Protection:Yes
