Zebronics ZEB-PA122A AC/DC Power Adapter – 12V 2A Output for Compatible Devices

Description

Features:

• Short circuit protection
• DC 12V
• 24W (Max.)
• Overload protection
• OverVoltage protection

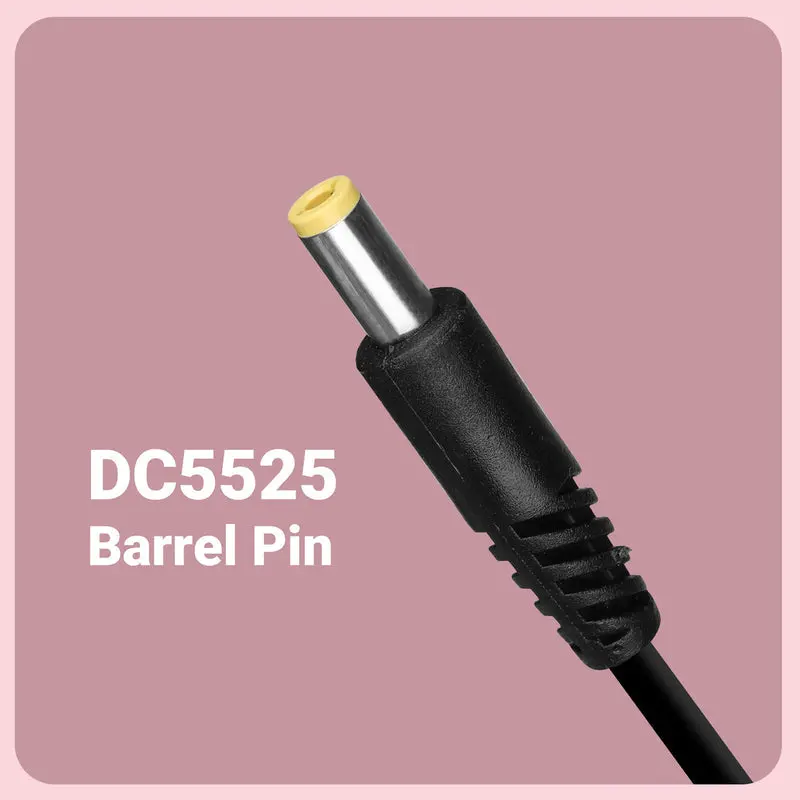

• with DC5525 barrel pin

Specifications:

• Input Voltage range  :  AC 120V~265V
• Input Frequency  :  50/60 HZ
• Input Current  :  0.25A
• Output Voltage   : 12.2V
• Output current  :  2A (Max.)
• Output Power  :  24W
• Ripple  :  <500mv
• Hold up Time  :  10 ms
• Turn-on Delay time  :  30 ms
• Rise & Fall time  :  30 ms
• Over Load Protection  :  Yes
• Over Voltage Protection  :  Yes
• Short circuit Protection   :  Yes
• Over Temperature Protection  :  Yes
• Operation Temperature  :  0°C to 45°C
• Storage Temperature  :  0°C to 55°C
• Operation Humidity  :  10% — 90% non condensing
• Storage Humidity  :  10% — 90% non condensing
• Input of the power supply unit    :  Indian 2-Pin Plug
• Output terminals of the power supply unit  :  Barrel Pin DC 5525
• LED Indicators   :  1
• Enclosure Materials  :  Plastic
• Weight with power cord   : 104 g
• Dimensions (W x D x H)  :  4.8 x 6.04 x 8.02 in cm
• Country of Origin  :  India

Package Contents

Power Adapter  :  1U
