YFDN40 High-Capacity Flow Meter – 5–150 L/min Industrial Water Flow Sensor

Description

1. Hydrostatic pressure: ≤ 1.75MPa
2. Operating voltage range DC 5 ~ 24V comply
3. Insulation resistance:> 100M
4. Input Dimeter: Inside: 36mm;Outside: 44mm
5. Output Dimeter: Inside: 33 mm; Outside: 44mm
6. Cable Length: 50 cm
7. Weight: 150 gm
8. Color : Black
9. Accuracy in 1 ~ 120L / MIN  ± 2% inline
10. Flow pulse characteristics F = (0.45 * Q) Q = L / Min meet
11. Low-temperature test at -20’C temperature placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value inline
12. High-temperature test temperature at 85’C placed after 72h, at room temperature for 1h, the first measurement accuracy within ± 5% value
13. 11/2″ DN40 flow rate 5~150L/min  Plastic Hall Turbine flow sensor meter  switch valve control liquid flow sensor

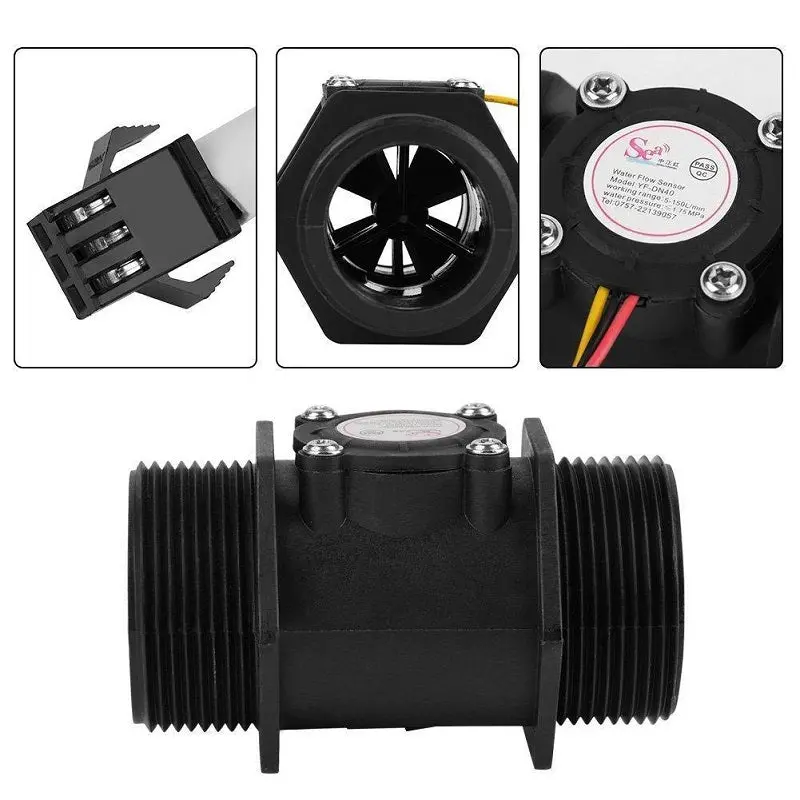

YF-DN40 1.5 inch is a plastic body water flow sensor that contains a water rotor and a hall-effect sensor and is used for flow measurement for industrial applications. When the water flows through the rotor, the rotor rolls, and its speed changes with a different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. The output of the flow sensor is proportional to the water flow. The more the water flowing more are the pulses.
