XH-W1209 Temperature Control Module – 12V Digital Thermostat with NTC Sensor

Description

• Temperature Control Range(°C): -50 to +110

• Resolution @-9.9°C to +99.9°C: 0.1°C

• Resolution @all temperatures: 1°C

• Accuracy: 0.1°C

• Refresh Rate(s): 0.5

• Supply Voltage(V): 12

• Measuring Inputs: NTC10K

• Cable Length: 0.5 Meter

• Output Type: 1 Channel Relay Output

• Capacity: 10A

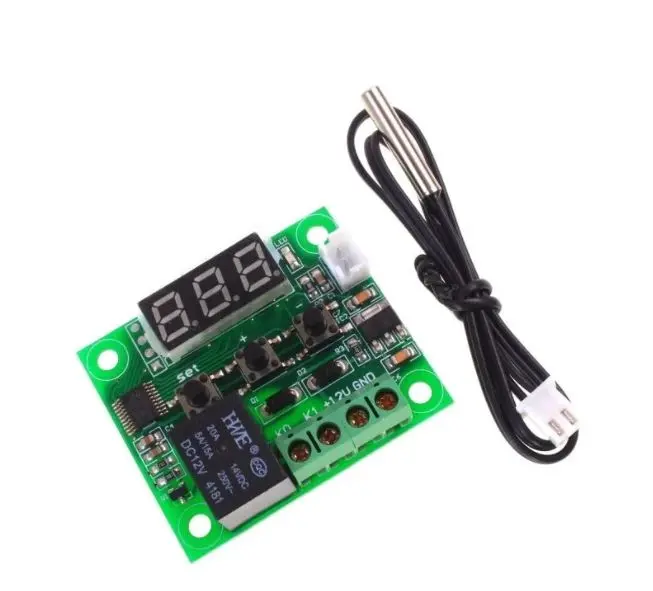

This is XH W1209 digital temperature controller Module W/ Display and NTC Waterproof Temperature Sensor.

The XH W1209 digital temperature controller Module W/ Display and NTC Waterproof Temperature Sensor is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor.

APPLICATION :

• To measure and display temperature

• To Turn any application ON/OFF based on temperature reading. (Both AC and DC)

• Example Project:- A.Fire alarm system . B. Auto cut off Electric Water Heater

Features :

• Power Consumption

• Static Current: <=35mA

• • Current: <=65mA
• Environmental Requirements

• Temperature: -10 ~ 60 C

• • Humidity: 20-85%

Package Includes :

1 x W1209 digital temperature controller switch with Temperature sensor and display
