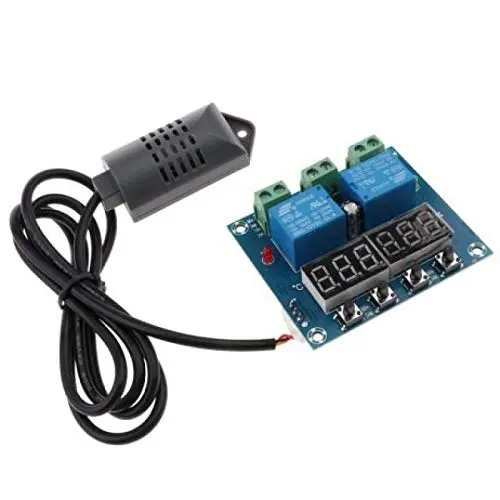

XH-M452 Digital Temperature and Humidity Control Module with Relay Output

Description

• Power supply: DC 12V

• Temperature measurement range:-40~120

• Humidity range0~100%RH

• Control precision0.1 0.1%RH

• Test probe Integrated sensor

—

Humidity Control

• Set to start humidity: long-press the + key, start the humidity value flashing, set by + / key launch humidity value

• Set stop humidity: long press to stop humidity value, set by + / key to stop the humidity value

Temperature Control

• Setting the temperature +: Normal display mode, long-press the + key for 3 seconds, start temperature numerical flashing, press the + / key setting values, the wrong operation after 5 seconds, automatically return to detect temperature display

• Setting the temperature :Normal display mode, long press button for 3 seconds, stop numerical flashing temperature, press the + / key set value

• Restore the factory Settings: At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888

• Setting the start temperature: Long press the + key, start the flashing temperature, set start temperature by + / key

• Setting Stop temperature: long press button, stop flashing temperature, set stop temperature by + / key

Features of XH-M452 Temperature and Humidity Controller Module:-

• Power supply: DC 12V

• Temperature measurement range:-40~120

• Humidity range0~100%RH

• Control precision0.1 0.1%RH

• Test probe Integrated sensor
