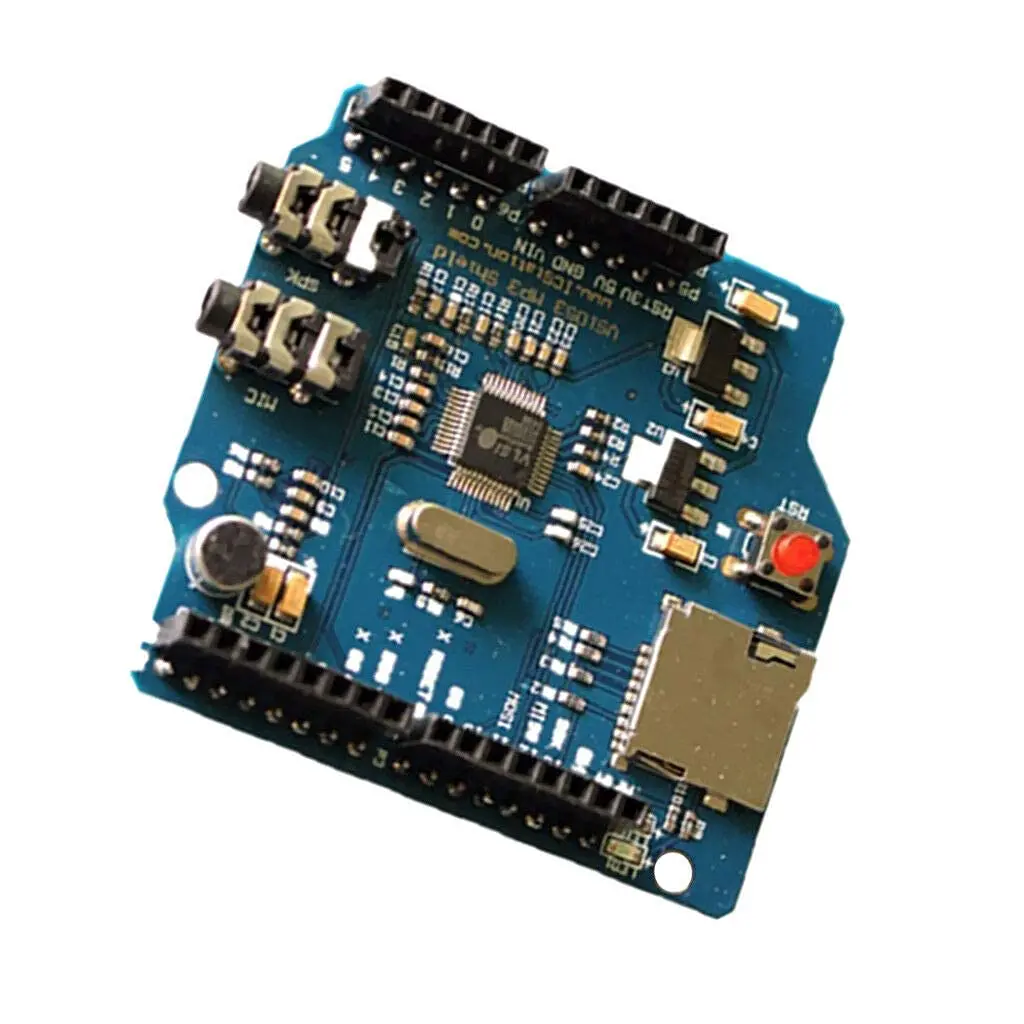

VS1053 MP3 Audio Decoder and Recording Development Board

Description

• Has a build-in microphone for sound recording
• Compatible with the Arduino Uno and Mega
• Has a micro-SD card holder (the chip on the shield supports FAT16 and FAT32)
• For pinout see image with pin descriptions (pin descriptions with X refer to pins to the VS1053 chip)
• Only works on 5V DC.

—

With this MP3 shield you can play various formats of music and have it controlled by your Arduino.
The music is on a micro-SD card that you can place in the micro-SD card holder on the shield.
In addition to playing music, this shield can also record music with the build-in microphone or an external microphone.

Specifications:

• Uses SPI interface
• Has a 3.5mm female (stereo) audio jack for output and microphone input. (two separate 3.5 mm connections)
• Has a build-in microphone for sound recording
• Compatible with the Arduino Uno and Mega
• Has a micro-SD card holder (the chip on the shield supports FAT16 and FAT32)
• For pinout see image with pin descriptions (pin descriptions with X refer to pins to the VS1053 chip)
• Only works on 5V DC.
