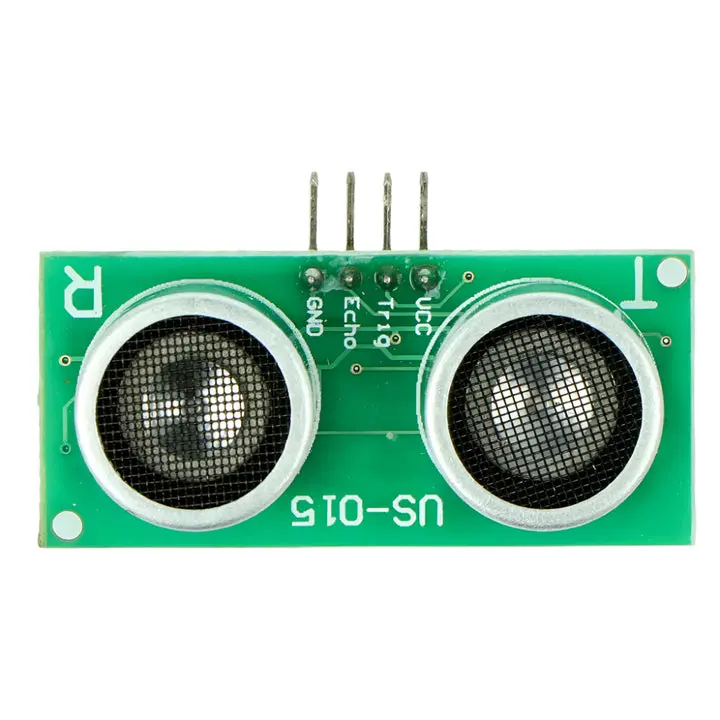

US-015 Ultrasonic Distance Sensor – Transducer-Based Measurement Module

Description

The US-015 sensor is a reliable ultrasonic module designed for accurate distance measurement and object detection. This module unit performs consistently in robotics, automation, and DIY prototyping, while also fitting smoothly into ultrasonic detector arduino projects that require stable output. Because it works well as an ultrasonic proximity sensor, makers and engineers use it for precision ranging from 2 cm to 400 cm with excellent repeatability.
More accurate than the popular HC-SR04, the US-015 sensor provides precise readings with accuracy up to 1 mm. It needs only two digital I/O pins for operation, making integration simple when developing ultrasonic detector arduino applications or refining ultrasonic proximity sensor measurements in embedded systems.
Thanks to its small form factor and low static current, the US-015 sensor suits battery-powered projects requiring dependable and consistent distance feedback. Whether you are building compact sonar units, robotic distance sensing modules, or fluid level monitors, this module delivers trustworthy and stable performance.

Technical Details:

• Distance Measuring Range: 2cm – 400cm
• Operating Temperature: 0°C to 70°C
• Operating Voltage: 5VDC
• Sensing Angle: 15°
• Static Current:3mA
• Dimensions: 44 x 20 x 15 mm (L x W x H)

Features:

• More accurate than HCSR04.
• It has a large measuring range.
• It detects distances from 2 cm to 400 cm.
• The static power consumption is less than 3mA.

Applications:

• Distance Measurement: Provides accurate ranging for robotics and automation using this ultrasonic module.
• Obstacle Detection: Helps autonomous robots and drones navigate safely and aligns well with ultrasonic detector arduino setups.
• Liquid Level Monitoring: Measures fluid levels in tanks and reservoirs using an ultrasonic proximity sensor approach.
• Security Systems: Used for motion detection in alarm and surveillance systems.

Package Includes:

• 1 x US-015 Ultrasonic Distance Measuring Transducer Sensor
