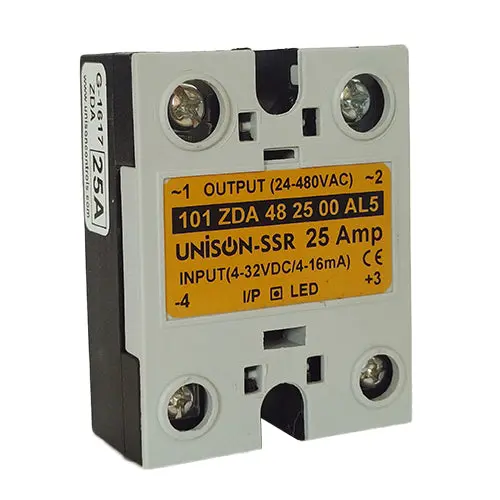

Unison SSR-25A Solid State Relay – DC-Controlled AC Output (101ZDA Model)

Description

UNI 101 ZDA 48 25 00 AL5 + G-68 HEAT SINK + DIN RAIL

25 Amp DC to AC Solid State Relay, Zero cross over SSR, Hockey puck 45 mm design SSR, Triac SSR, Opto isolation SSR, Panel mounted SSR, Din rail mounted SSR, 1PH SSR, Static Switch, Solid State Relay manufacturer in India, Solid State Relays, SSR, SSRs and Heatsink

• Input : 4-32VDC/4-16mA
• Input Green LED Indication
• Output : 24-480(47-63 Hz), 25Amp
• PIV : 800, I²T : 450A²S for 9.6mS
• Zero Cross Over SSR design
• Body insulation : 6kV for 1min
• I/P. to O/P. insulation : 6kV for 1min
• Long life cycle Up to 10¹¹ cycles
• Inbuilt surge voltage protection of 2700Vrms
