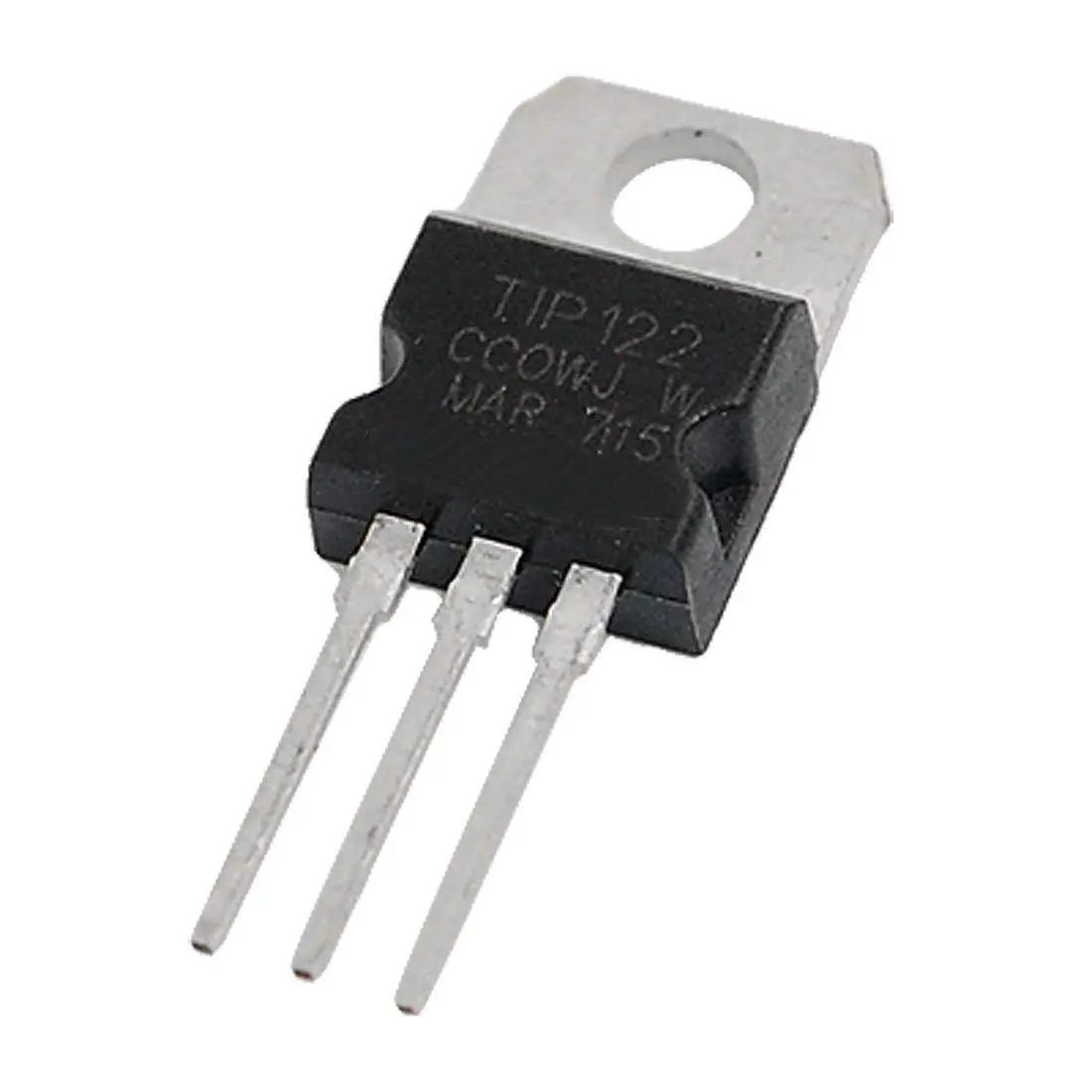

TIP122 NPN Darlington Power Transistor – TO-220 Package

Description

Power dissipation of 65W. Operating junction temperature range from -65°C to 150°C
Collector emitter saturation voltage of 2V at Ic=3A. DC current gain of 1000 at Ic=3A

The TIP122 from Multicomp are through hole, darlington transistor in TO-220 package.

This transistor is used for low speed switching and amplification. Collector emitter voltage (Vce) of 100V. Continuous collector current (Ic) of 5A.

Power dissipation of 65W.

Operating junction temperature range from -65°C to 150°C Collector emitter saturation voltage of 2V at Ic=3A.

DC current gain of 1000 at Ic=3A
