Tauren 12V DC Rectangular Gearmotor – 60 RPM Low-Speed Precision Motor

Description

DC Square Gear / Geared Motor 60 RPM – High Torque is a very high torque motor that should be used to make big robots or robotized platforms. The gear box is built to handle the stall torque produced by the motor. The drive shaft is supported with metal bushes.

Features:

• Heavy-duty metal gears
• Uniformity of parts.
• ability to absorb shock and vibration as a result of elastic compliance.
• Ability to operate with minimum or no lubrication, due to inherent lubricity.
• Relatively low coefficient of friction.
• corrosion resistance; elimination of plating, or protective coatings.

Specifications:

• Operating Voltage: 12V DC
• No Load Current: 318 mA
• No load Speed: 60 RPM (at 12V)
• Full Load Current (A): 1.3
• Rated Current (A): 1.3A
• Rated Torque (Kg-cm): 40
• Shaft Length (mm): 24.5
• Shaft Diameter (mm): 8
• Length (mm): 91

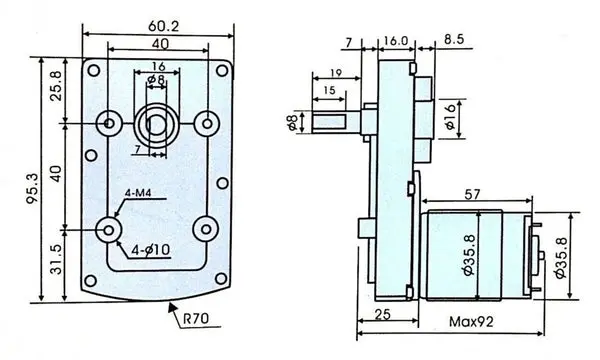

• Dimension Overall: 95.75 X 60.5 X 91 (Length)
• Mounting Holes: M4 threading
• Weight (gm): 490

Application:

• Robotic purposes.
• Central air – conditioning valve
• Coin refund devices
• Industrial applications.
