Studiorsr Toyota GR Supra (A90) Full Roll Cage System

Description

Signature MK5 Supra Roll cage / Roll bar

Now available in 2 version designs at the same price!
1) Version 1 – for race seats & harnesses w/harness bar on main hoop (less leg room with stock seats; stock seats still fit, but not recommended for drivers who are taller than 5’9″
2) Version 2 – for normal leg room recommended for those who will always use stock seats

Both Versions use the same lightweight tubing without sacrificing strength and rigidity with the direct mounting to the frame rails of the chassis unlike any other roll bar on the market. For even more weight savings, choose our 4130 Chromoly option for either Version 1 design or Version 2!

StudioRSR was the first-in-the-world to develop and release a rollcage / rollbar (half-cage) for the Toyota MK5 Supra A90 chassis to fulfill motorsport, HPDE, and track-day needs. Chassis rigidity and proprietary features makes the StudioRSR roll cage the premium option available in the market. Designed and manufactured in-house, StudioRSR uses the latest manufacturing technologies to create this upgrade with NASA Racing specifications and wide-radius bends. There is zero metal crimping and zero tubing wall failure that is often seen from alternative roll cages. The StudioRSR half-cage is 100% bolt-in featuring a 4-point optimum mounting design with form-fitted brackets specific to the Toyota A90 chassis. Professional installation is recommended, but installation is made easy with chromoly interlocking tubing clamps, zero welding, and all necessary hardware included. Available in-house at StudioRSR or shipped direct to you or your preferred Dealer/Installer internationally. This half-cage consists of 2 main pieces making installation and shipping even easier.

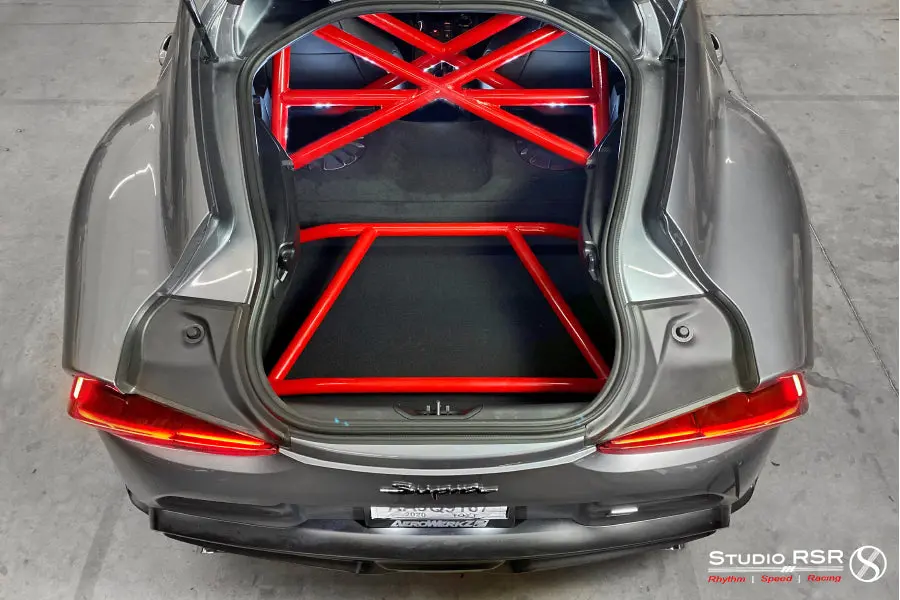

***NOTE – The Rear Brace (4-point trapezoidal shape that is parallel the floor of the trunk in the rear of the car) is sold separately for $495.00.

– 100% bolt-in / fully-reversible
– Full-Interior Compatibility
– No Welding needed for installation
– NASA Racing spec (as of 2021.8.3 Edition rulebook **not sanctioned by NASA)
– 4-point half-cage
–  steel brackets form-fitted to the 2015-present chassis
– Made with latest manufacturing technologies
– Wide-Radius bends = even stress distribution, no metal crimping, & no tubing wall failure
– Designed with optimum bolt locations to factory mounting points
– Signature designed Studio RSR
– Proprietary CNC machined tube-integrated chromoly tubing clamps
– Heavy-duty Chromoly steel 1.75″ x .120 wall thickness all-around
– All Grade-8 mounting hardware included
– Installation instruction included
– This product is intended for Off-Road use only
– Product photos may vary from actual item
– StudioRSR Terms & Conditions apply (see link below to Terms & Conditions)
– 100% Made in USA
– Powdercoated in Red, White, Yellow, or Black at no additional cost

The following Custom Options are available with additional costs:
– Custom Paint/Powdercoat & Factory paint colors available
– Custom X-designs and gusseting available (Contact StudioRSR for details)
– Integrated Go-Pro & other Camera mounts

PLEASE SPECIFY YOUR COLOR CHOICE IN NOTES SECTION UPON ORDERING.
All Single-shade gloss colors are included in the standard price of your order. Custom colors such as Metallics, Candy colors, Transparent colors etc. are an extra fee based on the exact color you would like.
