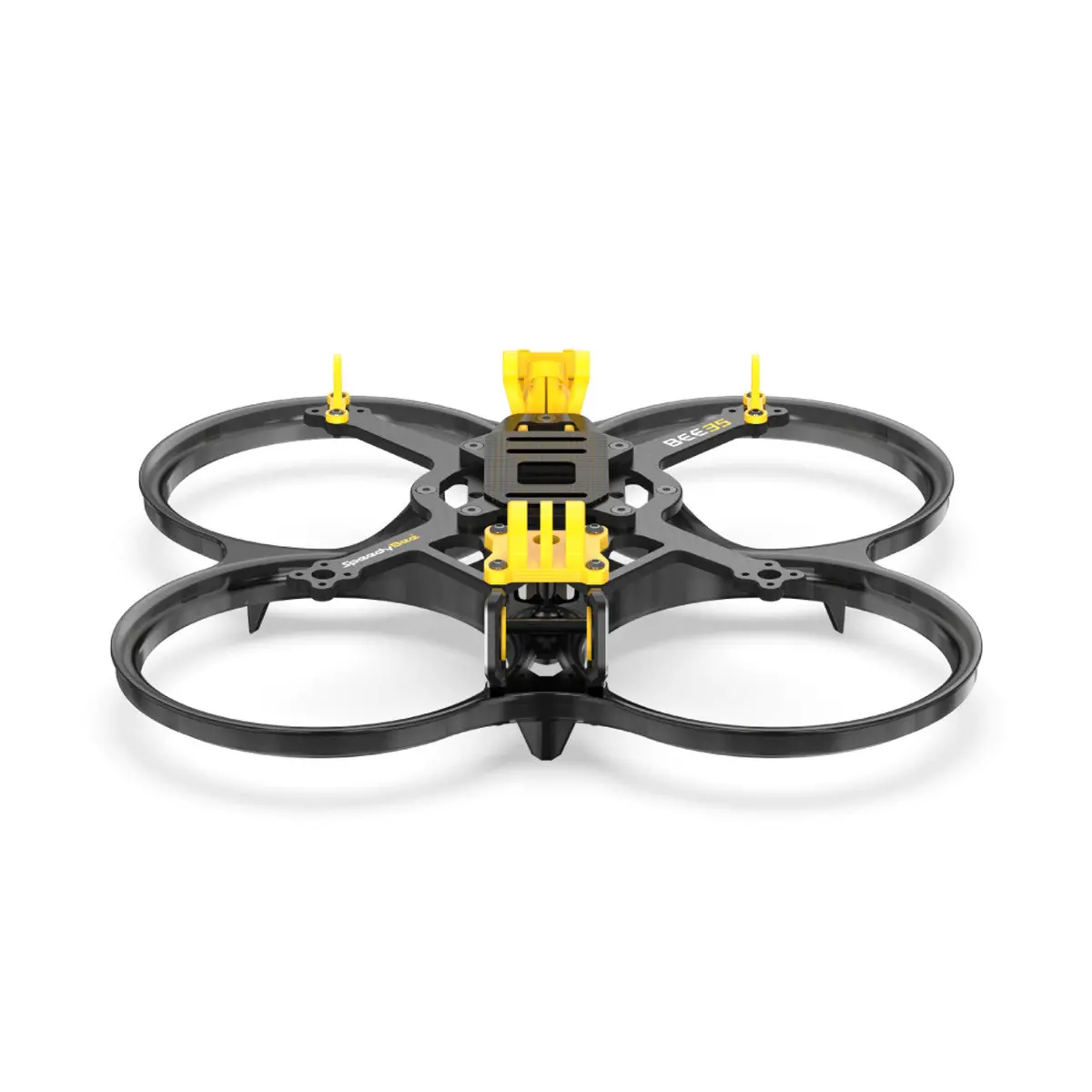

Speedybee BEE35 Frame Kit – Lightweight Carbon Fiber Chassis for O4 Pro & Standard Builds

Description

1. Wheelbase 153mm
2. Top Plate Thickness 3.5mm
3. Bottom Plate Thickness 2mm
4. Camera Mounting Distance 19/20mm
5. ESC/Motor Mounting Height 24mm
6. Flight Stack Mounting Holes 20×20/25.5×25.5/30.5×30.5mm
7. Video Transmitter Mounting Holes 20×20/25.5×25.5
8. Propeller Size    90mm
9. Motor Mounting Holes    12*12mm
10. Weight    138g
11. CNC Heat Sink    15g
12. Camera Gimbal    28g
13. Recommended Motor    1806/2004/2006
14. Recommended KV    4S/2500-3500KV,6S/1800-2300KV
15. Recommended Battery    900-1500mAh 4S/6S

Features:

1. Custom-made Aluminum Alloy Head: Provides effective protection for the DJI O3 system.
2. Customized Silicone Shock Absorption: Eliminates the ‘jelly’ effect for clear footage.
3. Bottom Aluminum Alloy Design: Integrates seamlessly with the O3 and RunCam Link, featuring Type-C port and memory card slot.
4. Versatile Stack Compatibility: Supports 20x20mm, 25x25mm, and 30.5×30.5mm stacks.
5. Dual Battery Support: Offers horizontal and vertical binding options for enhanced durability and installation ease.
6. Convenient Flight Controller Connectivity: Connects without disassembling the drone, supporting both Type-C and micro interfaces.
7. Detachable Shock-Absorbing Gimbal Option: Enhances customization with a separate purchase option.

Package Includes:

1 x SpeedyBee Bee35 Frame
