Sound Detection Sensor Module — Microphone-Based Analog/Digital Trigger for Noise-Activated Projects

Description

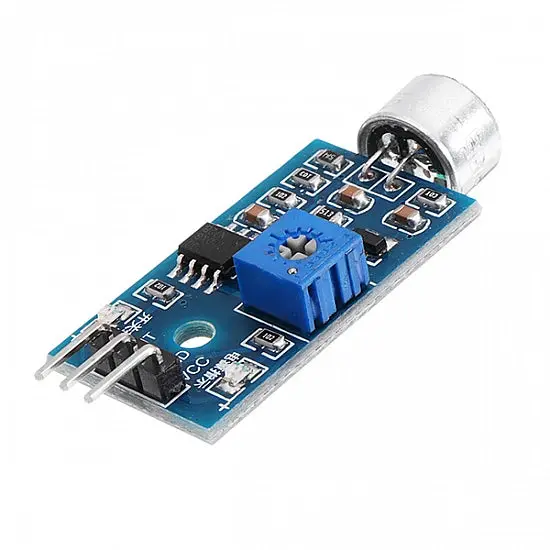

The sound detection sensor module for Arduino detects whether the sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op-amp. The sound level set point is adjusted via an onboard potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low.

Features:

1. Operating voltage 3.3V-5V
2. Outputs digital switching output (high and low levels 0 and 1
3. Operating current (Vcc=5V): 4-8mA
4. Microphone sensitivity (1Khz): 52-48dB
5. Microphone Impedance: 2.2KΩ
6. Microphone Frequency: 16-20Khz
7. Microphone S/N ratio: 54dB
8. Signal output indication
9. Single-channel signal output
10. Outputs low level and the signal light when there is sound

Package Includes:

1 x Microphone Sound Detection Sensor Module
