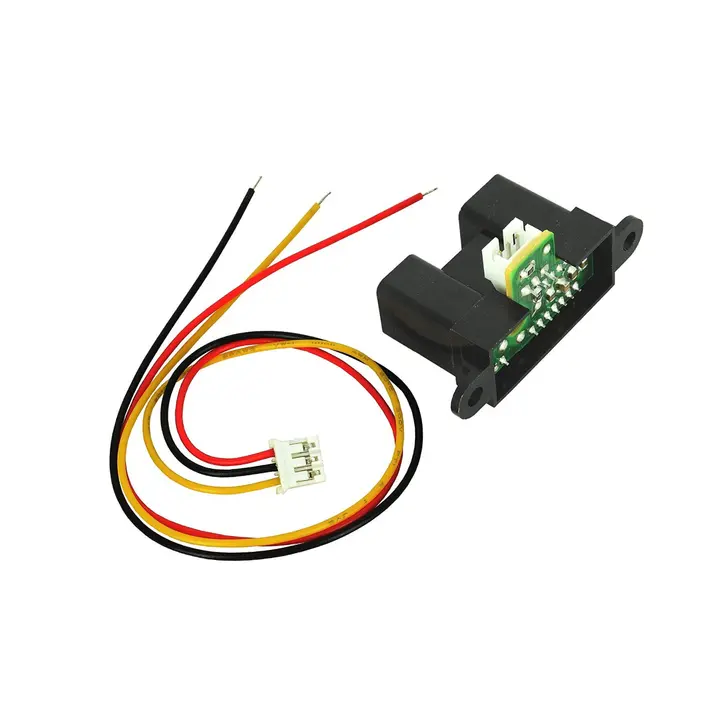

Sharp GP2Y0A02YK0F Infrared Distance Sensor – 20–150 cm Range

Description

1. Distance measuring range: 20 cm to 150 cm (8″ to 60″)
2. Output type: Analog voltage
3. Output voltage differential over distance range: 2.05 V (typical)
4. Update period: 38 ± 10 ms

The Sharp distance sensors are a popular choice for many projects that require accurate distance measurements. This IR sensor is more economical than sonar rangefinders, yet it provides much better performance than other IR alternatives.

Interfacing to most microcontrollers is straightforward: the single analog output can be connected to an analog-to-digital converter for taking distance measurements, or the output can be connected to a comparator for threshold detection. The detection range of this version is approximately 20 cm to 150 cm (8″ to 60″).

Features:

1. Long-distance type (bigger size).
2. Analog output.
3. Good Alternative to Sonar Sensors.
4. This item comes with a JST connector and wires

Package Includes :

1 x Sharp Distance Measuring Sensor unit 20 to 150 cm.

1 x Connecting Cable.
