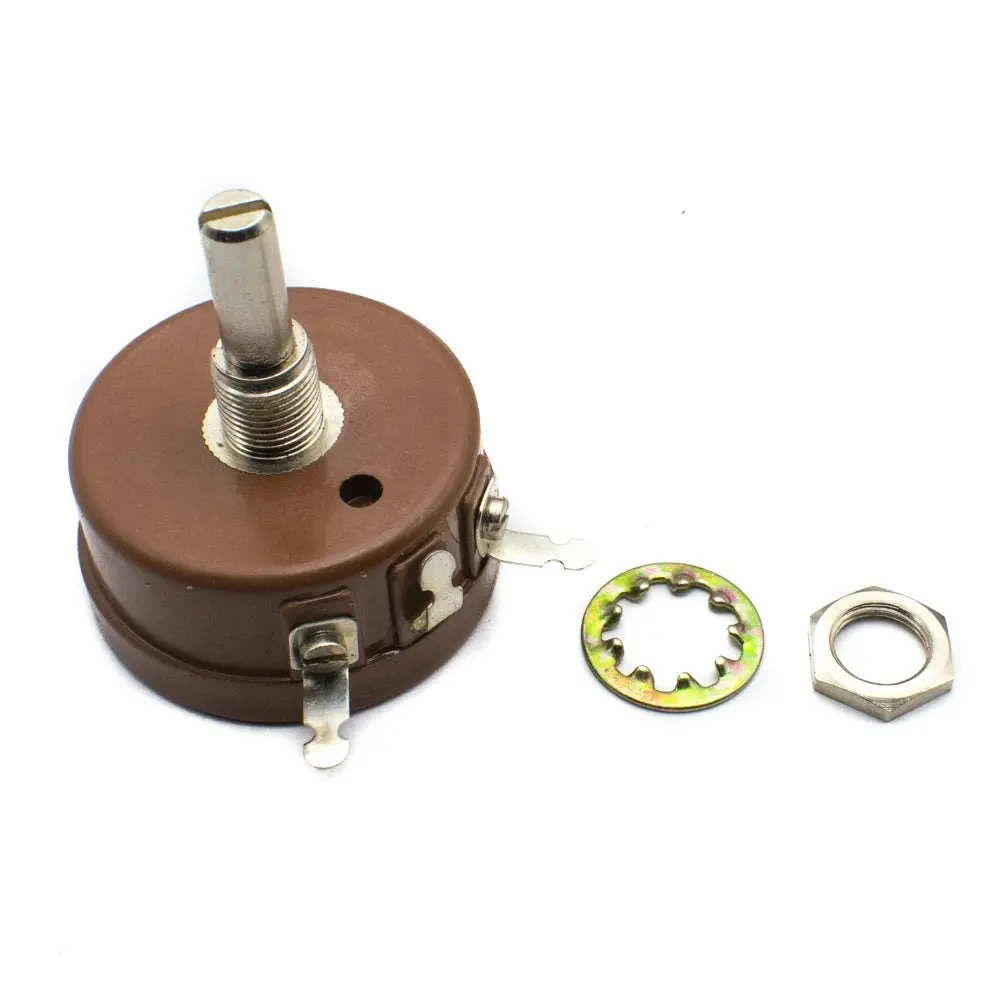

RW-3 3W Wirewound Potentiometer – 5kΩ, Single-Turn, 25mm Shaft

Description

The most sought after product in Domestic and International market from PANKAJ, model R.W-3 marksit’s presence since over five decades. Offers best value for money in manual setting application.

Compatible Potentiometer Knob : AK-25

Specifications:

• Make: Pankaj
• Model – RW-3
• Resistance – 5K ohm
• Resistance Tolerance -+10% Standard, +5% Special
• Power Rating – 3 Watt @ 40°C
• End Resistance – 0.2Ω or 0.02 % which ever is greater
• Elec. Angle of Rotation – 265° + 15°
• Maximum Working Voltage – 500 VDC
• Insulation Resistance – 300 MΩ @ 500 VDC
• Voltage Proof – 1500 VAC for 1 Min. At Sea level
• TCR of Resistance Wire – 150 ppm/°C
• Rotational Life Expectancy – 20,000 Cycles at 15 RPM
• Temperature Range – 0 – 70°C.
• Shaft Diameter – 6.3mm
• Shaft Length- 25mm
• Housing Length: 20mm
• Housing Diameter 41mm
• Height- 44mm
• Bush Mounting- 3/38″ x 32 TPI, 10mm Length
• Mechanical Angle of Rot.- 285° + 15°

Features

• Brass Nickel Plated Bush & Spindle
• Tin Plated Terminals
• High Grade Engineering Moulded Plastic Housing

Applications

• Temperature Controllers,
• Power Supplies,
• Process Control Equipments,
• Test and Measuring Instruments,
• Control Panels,
• Offset Settings,
• Amplifier Speakers,
• AC/DC Motor Drives,
• Many more
